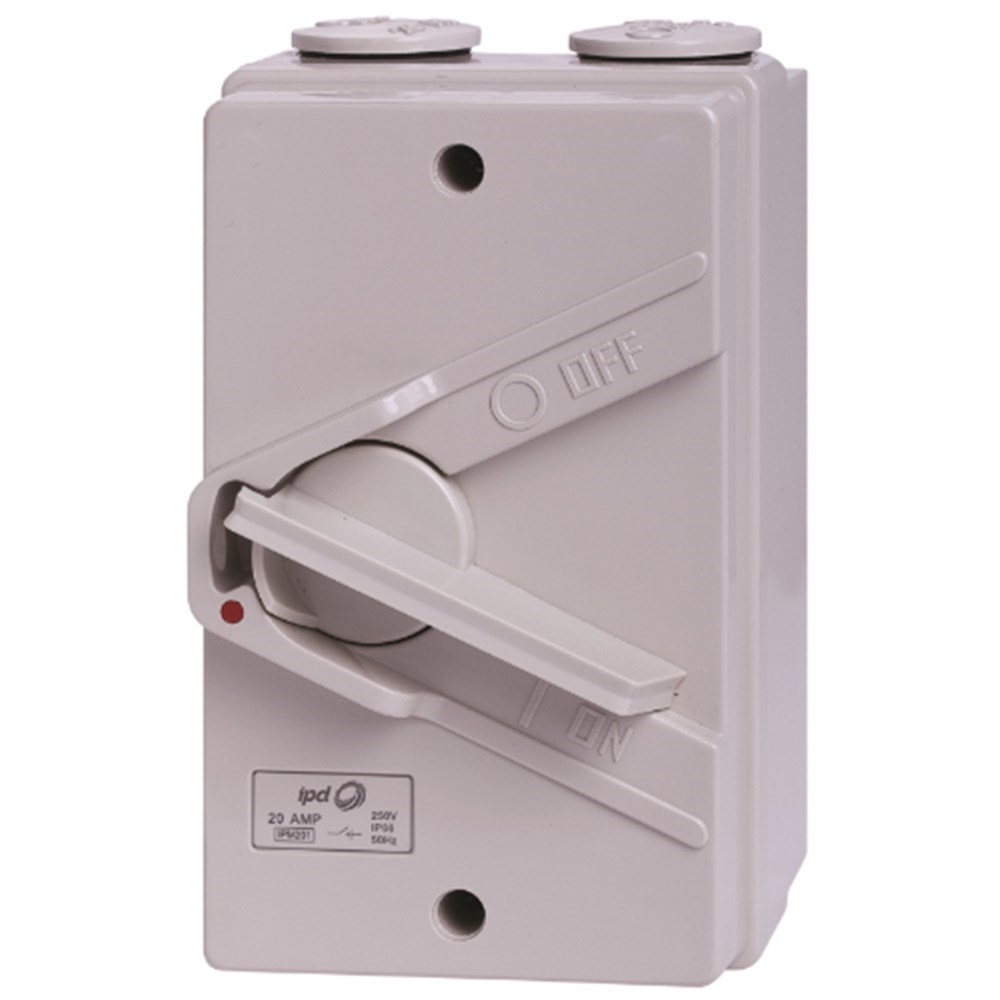

IPD IPM201 Padlockable IPM Weatherproof Isolators 1-P 20A 250V IP66

Product Code: IPM201

  • 20A isolator with single pole
  • Compact size: 82x136x89 mm
  • Durable grey finish
  • IP66 for superior protection
  • Multiple gland entries for versatility
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Cable Cross Section (mm²) 25
No. of Poles 1
Pack Quantity 30
Rated Current (A) 20
Rated Voltage (V) 250
Dimensions (mm) 82W x 136H x 89D
AS3133 M-Rating 120
Product Type Padlockable IPM Weatherproof Isolators
Brand IPD
Cable Cross Section 25 sq-mm
Colour Grey
Degree of Protection IP66
Depth 89 mm
Gland Entries (4) M25 Threaded, (1) 25mm Smooth Side
Height 136 mm
Number of Poles 1
Rated Current 20 A
Rated Voltage 250 V
Width 82 mm

Description

IPM weatherproof isolator 1P 20A 240V padlockable, IP66. Max cable area 25mm², 4 x M25 threaded entries and 1 x 25mm smooth side entry. Full size heavy duty switch mechanism and stainless steel fixing screws. Includes earth & neutral terminals. Tested to IEC 60947.3 & AS3133. Dimensions 82Wx136Hx89Dmm and pack quantity is 30.
