Brand	SCHMERSAL
Gross Weight (g)	637
Latching Force (N)	100
Maximum Electrical Switching Frequency	1Hz
Termination	Connector M23, 8+1-pole
Utilisation Category DC-13	24V / 0.25A
Ambient Temperature Range (°C)	-25 ... +55
Degree of Protection	IP65 IP67
Dimensions (mm)	179H X 40W X 40L
Housing Material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Rated Insulation Voltage (V)	32
Standards and Approvals	EN ISO 13849-1 EN ISO 14119 EN IEC 60947-5-3 EN IEC 61508
Tightening Torque (Nm)	8

Safety Interlocks

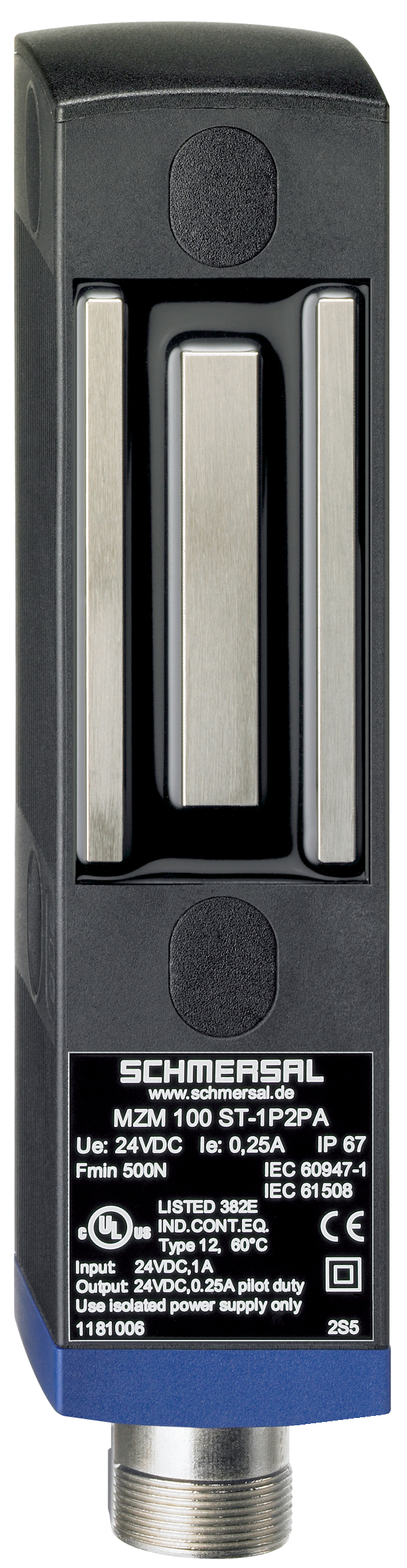

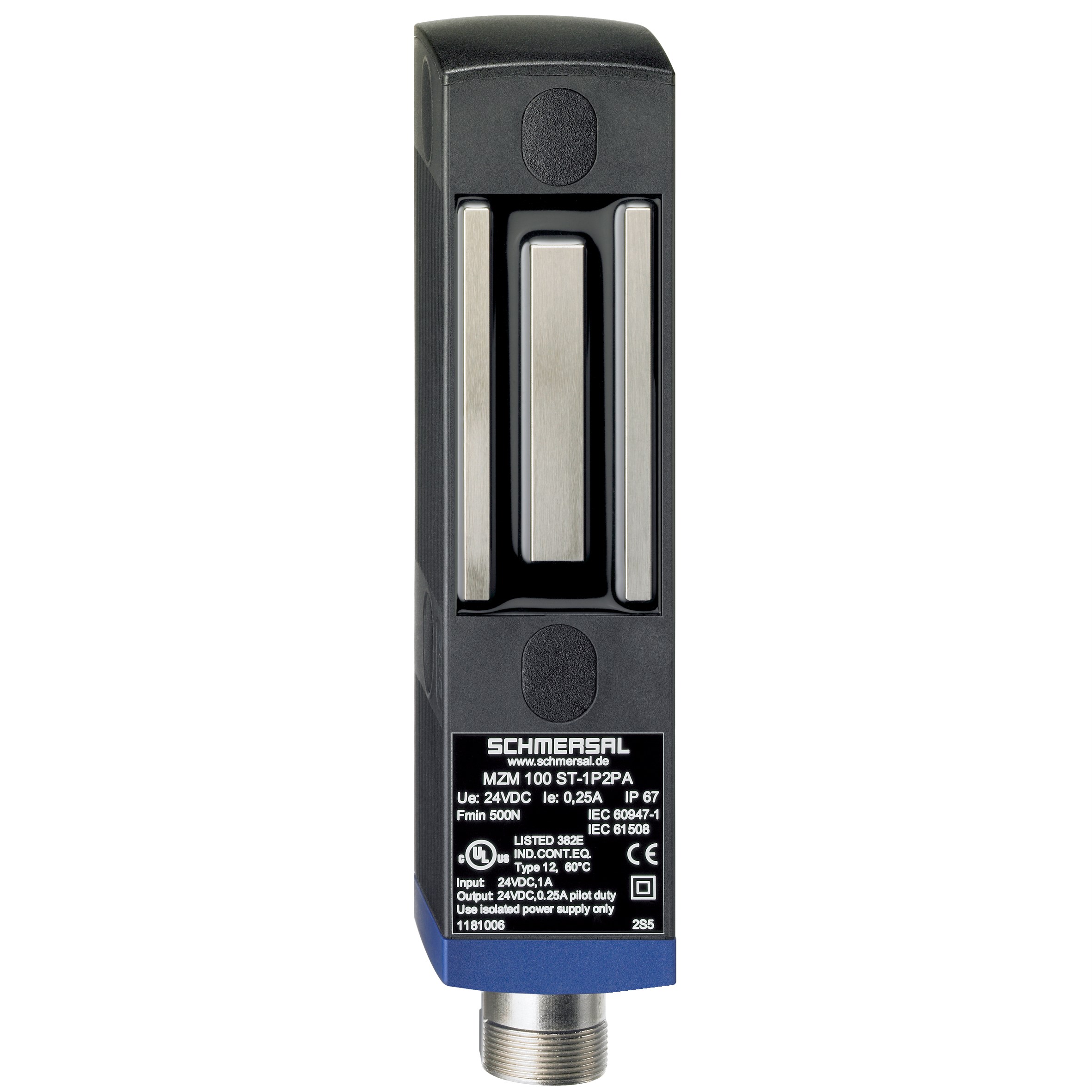

SCHMERSAL SOLENOID INTERLOCK MZM 100 ST-1P2PWR100-A 101194473
