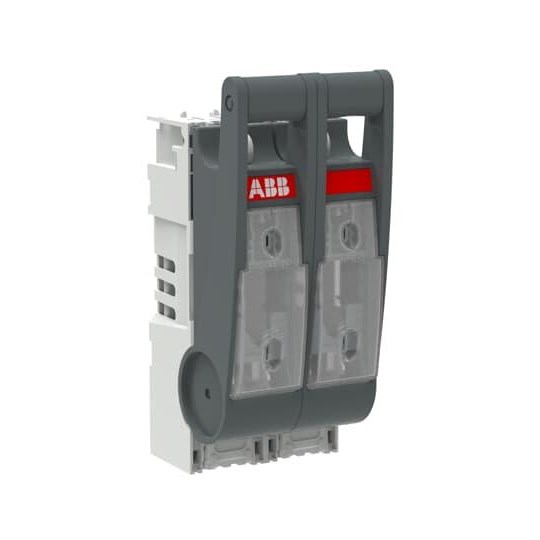

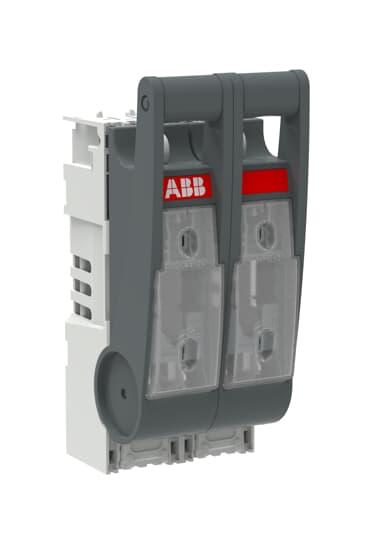

ABB XLP00-2P-4BC Disconnects Fuse 2-P 160A 500-690VAC Cable Clamp Terminal IP30 For: EV008979

Product Code: XLP00-2P-4BC

  • Handles up to 160 A current
  • Compact size: 40mm width
  • Supports voltages of 500-690 VAC
  • IP30 protection rating
  • Front-side control element
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Poles 2
Rated Conditional Short-Circuit Current - Inc (kA) 50
Rated Current (A) 160
Rated Uninterrupted Current - Iu (A) 125
Rated Voltage DC (V) 220
Rated Voltage AC (V) 500 - 690
Suitable For EV008979
Maximum Operational Voltage AC (V) 690
Type Main Switch
Main Circuit Electrical Connection Cable Clamp
Position of Control Element Front Side
Product Type Disconnects Fuse
Brand ABB
Control Element Position Front Side
Degree of Protection IP30
Depth 185 mm
Electrical Connection Cable Clamp
Height 88 mm
Mounting Type Busbar
Number of Poles 2
Power Loss 3.5 W
Rated Current 160 A
Rated Short Circuit Current 50 kA
Rated Voltage 500-690 VAC
Suitable For Use With EV008979
Terminal Type Cable Clamp
Width 40 mm

Description

XLP00,2-pole,160A, incl. 4 Bridge Clamps

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
