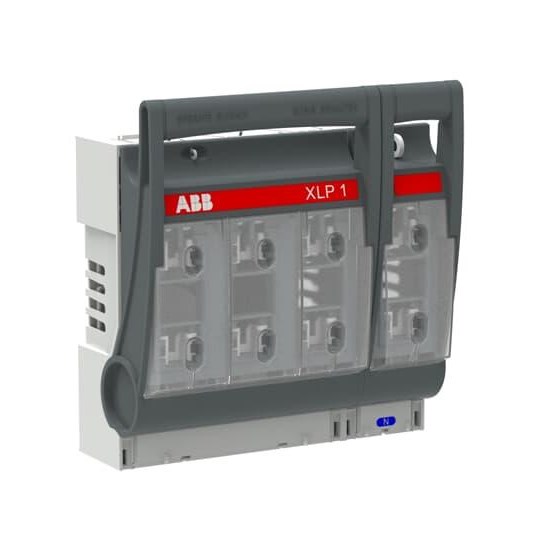

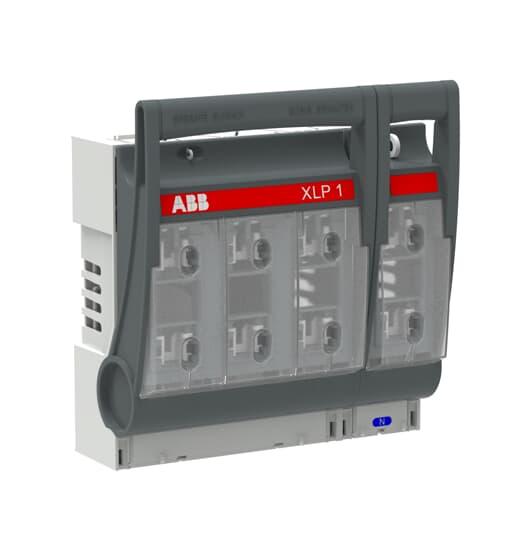

ABB XLP1-4P Disconnects Fuse 4-P 250A 500VAC Lug Terminal IP30 For: NH1

Product Code: XLP1-4P

  • Rated for 250 A current handling
  • Supports up to 50 kA short circuit
  • Operates at 500 VAC voltage
  • IP30 protection against dust
  • Fits NH1 base with busbar mount
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Operational Voltage AC (V) 500
No. of Poles 4
Rated Conditional Short-Circuit Current - Inc (kA) 50
Rated Current (A) 250
Rated Uninterrupted Current - Iu (A) 250
Rated Voltage AC (V) 500
Suitable For NH1
Type Main Switch
Main Circuit Electrical Connection Bolt Connection
Position of Control Element Front Side
Product Type Disconnects Fuse
Brand ABB
Control Element Position Front Side
Degree of Protection IP30
Depth 269 mm
Electrical Connection Bolt
Height 117 mm
Mounting Type Busbar
Number of Poles 4
Power Loss 7.5 W
Rated Current 250 A
Rated Short Circuit Current 50 kA
Rated Voltage 500 VAC
Suitable For Use With NH1 Base
Terminal Type Lug
Width 254 mm

Description

XLP1,4-pole,250A, without clamps or bolts
