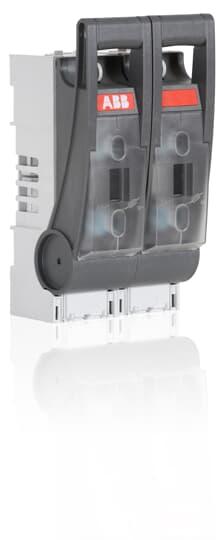

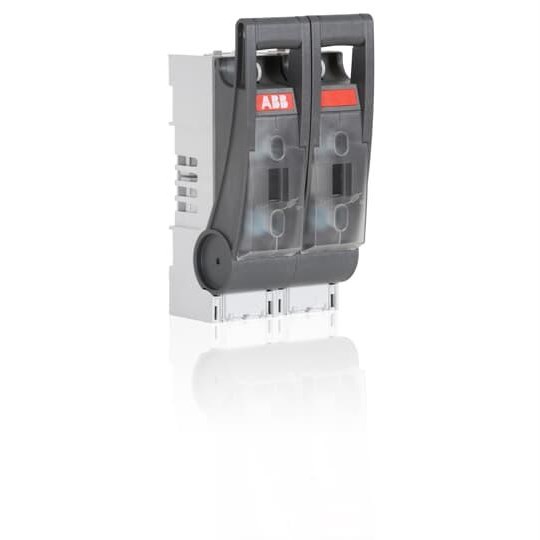

ABB XLP2-2P Disconnects Fuse 2-P 400A 500-690VAC Lug Terminal IP30 For: NH2

Product Code: XLP2-2P

  • Rated for 400 A, 500-690 VAC
  • Compact size: 160x129x289 mm
  • Handles short circuits up to 50 kA
  • IP30 protection rating
  • Designed for NH2 base busbar mounting
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Poles 2
Rated Conditional Short-Circuit Current - Inc (kA) 50
Rated Current (A) 400
Rated Uninterrupted Current - Iu (A) 315
Rated Voltage DC (V) 440
Rated Voltage AC (V) 500 - 690
Suitable For NH2
Maximum Operational Voltage AC (V) 690
Type Main Switch
Main Circuit Electrical Connection Bolt Connection
Position of Control Element Front Side
Product Type Disconnects Fuse
Brand ABB
Control Element Position Front Side
Degree of Protection IP30
Depth 289 mm
Electrical Connection Bolt
Height 129 mm
Mounting Type Busbar
Number of Poles 2
Power Loss 13 W
Rated Current 400 A
Rated Short Circuit Current 50 kA
Rated Voltage 500-690 VAC
Suitable For Use With NH2 Base
Terminal Type Lug
Width 160 mm

Description

XLP2,2-pole,400A, without clamps or bolts
