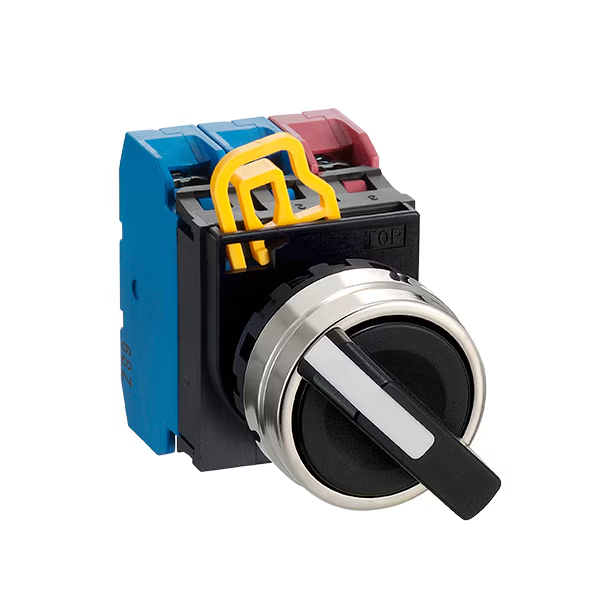

The YW Series Selector Switch is a reliable and robust solution for industrial and commercial applications, designed to meet the demanding needs of professionals in the electrical engineering sector. With its solid construction and adherence to international standards, this selector switch offers both performance and safety.
At the core of its functionality, the selector switch features a knob actuator type with a maintained function, ensuring ease of use in various operational settings. It supports a rated current of 10 A and operates efficiently at frequencies between 50/60 Hz. The device is built to withstand operational temperatures ranging from -20 to 55 degrees Celsius, making it suitable for diverse environmental conditions.
The dimensions of this selector switch are compact yet practical, with a width of 30 mm, height of 41.4 mm, and depth of 69.8 mm. These measurements allow for easy integration into panels or control systems without compromising space or accessibility.
A standout feature is its dual degree of protection: IP20 for basic protection against touch by fingers or objects greater than 12 mm in diameter, and IP65 which ensures complete protection against dust ingress as well as low-pressure water jets from any direction—ideal for environments where moisture resistance is crucial.
Installation is straightforward thanks to an M3.5 screw terminal type that requires a tightening torque of just 1 N-m. The mounting hole diameter needed is 22 mm—a standard size that facilitates compatibility with existing setups.
Safety compliance is assured through certifications like CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, and UL508 standards—demonstrating that this product meets rigorous quality benchmarks globally recognized within the industry.
The contact configuration includes one normally open (NO) contact paired with one normally closed (NC) contact providing flexibility in circuit design applications while maintaining high insulation resistance at 100 MOhms ensuring minimal leakage currents even under adverse conditions.
With an impressive rated insulation voltage capacity up to 600 V combined with its metal bezel material fashioned into an aesthetically pleasing round shape; durability alongside visual appeal makes this component not only functional but also appealing when installed visibly on machinery dashboards or control panels alike.
In summary: If you're seeking reliability coupled seamlessly together within compact form-factor then look no further than what’s offered here via our trusty YW series selection!
