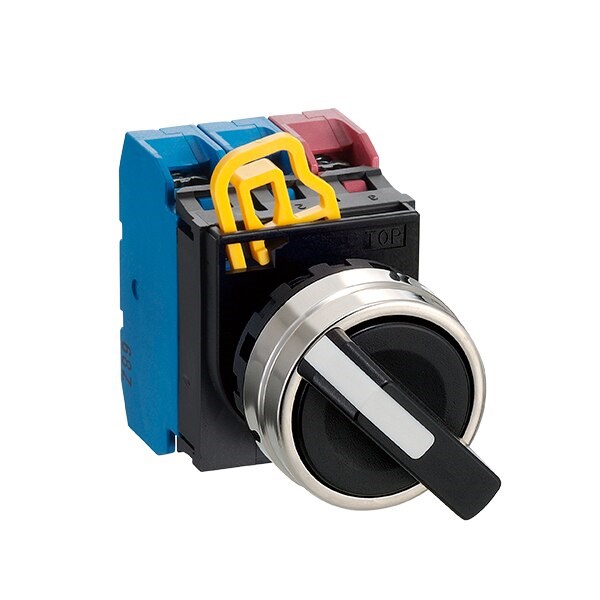

IDEC YW4S-2E21 Selector Switch 2Position 2NO+1NC Left Right Maintained Round Metal M3.5 Screw Terminal

Product Code: YW4S-2E21

  • Selector switch with 10A rated current
  • Operates at 50/60 Hz frequency
  • IP20/IP65 protection rating
  • Maintained function, round metal bezel
  • Contact config: 2NO+1NC
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 30W x 41.4H x 69.8D
No. of Normally-open Contacts 2
No. of Normally-closed Contacts 1
Product Type Selector Switch
Brand IDEC
Series YW
Bezel Material Metal
Bezel Shape Round
Contact Configuration 2NO+1NC
Degree of Protection IP20, IP65
Depth 69.8 mm
Function Maintained
Height 41.4 mm
Insulation Resistance 100 MOhm
Model Maintained
Mounting Hole Diameter 22 mm
Number of Positions 2
Operation Position Left, Right
Operational Temperature -20 to 55 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Insulation Voltage 600 V
Standards and Approvals CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, UL508
Terminal Type M3.5 Screw
Tightening Torque 1 N-m
Width 30 mm

Description

The IDEC YW4S-2E21 Metal Selector Switch is a compact and efficient solution for control operations. It features two Normally Open (NO) contacts and one Normally Closed (NC) contact within a space-saving 10mm thick contact block. The design includes a removable operator for flexibility, and its lightweight construction does not compromise durability. Installation and maintenance are simplified with the separate contact block, ensuring ease of use in various industrial settings.
