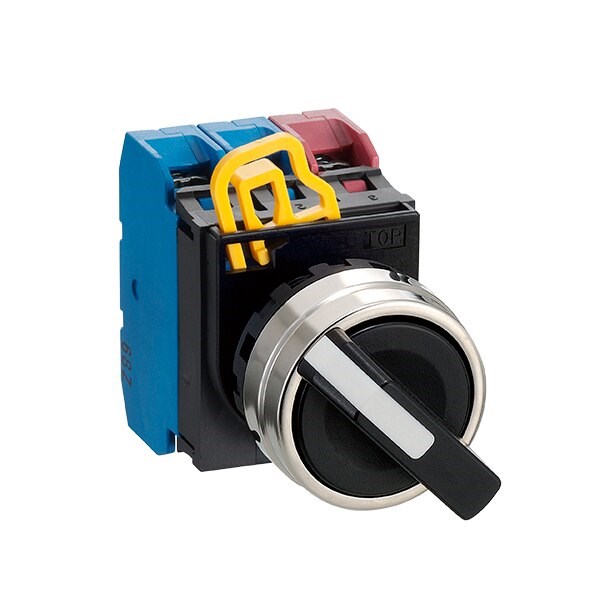

IDEC YW4S-3E02 Selector Switch 3Position 2NC Left Center Right Maintained Round Metal M3.5 Screw Terminal

Product Code: YW4S-3E02

  • Selector switch with 2NC contact config
  • Operates at 10A, 50/60 Hz frequency
  • Fits 22mm mounting hole, round metal bezel
  • Wide temp range: -20 to 55°C
  • Complies with CSA, IEC, UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 30W x 41.4H x 69.8D
No. of Normally-closed Contacts 2
Product Type Selector Switch
Brand IDEC
Series YW
Bezel Material Metal
Bezel Shape Round
Contact Configuration 2NC
Depth 69.8 mm
Function Maintained
Height 41.4 mm
Insulation Resistance 100 MOhm
Model Maintained
Mounting Hole Diameter 22 mm
Number of Positions 3
Operation Position Left, Centre, Right
Operational Temperature -20 to 55 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Insulation Voltage 600 V
Standards and Approvals CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, UL508
Terminal Type M3.5 Screw
Tightening Torque 1 N-m
Width 30 mm

Description

The IDEC YW4S-3E02 Metal Selector Switch is a compact and efficient solution for control operations. This 3-position maintained switch features two normally closed (NC) contacts and is designed for 22mm mounting. Its space-saving design includes 10mm thick contact blocks, while the removable operator enhances flexibility. The separate contact block simplifies installation and removal, making it an ideal choice for streamlined assembly processes. Lightweight yet durable, this selector switch meets the demands of various industrial applications.
