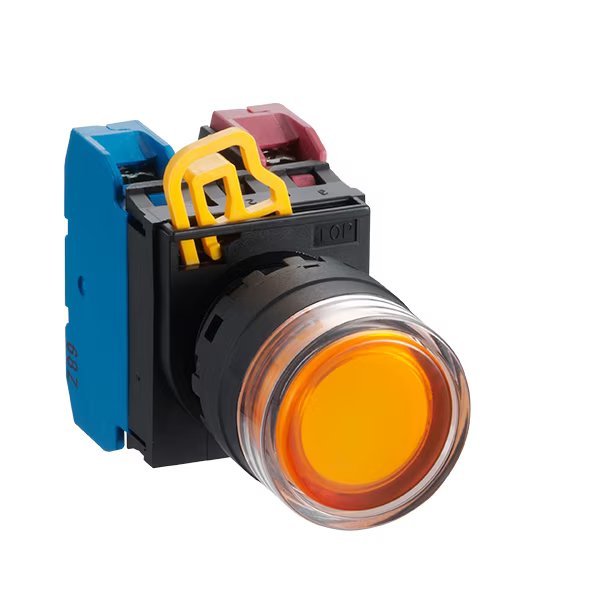

The YW Series pushbutton is a versatile and reliable choice for industrial and commercial applications, designed to meet rigorous standards while offering ease of use. With a rated voltage of 230/240 VAC/DC, this pushbutton is suitable for various electrical environments. Its illuminated feature ensures visibility in low-light conditions, with a built-in red LED lamp providing clear indication.
Measuring 30 mm in width, 41.4 mm in height, and 64.8 mm in depth, the compact design makes it ideal for space-constrained installations. The actuator type features an extended button with a full shroud, ensuring durability and ease of operation. The device fits into a standard cutout size of 22 mm diameter.
Engineered to withstand harsh environments, this pushbutton boasts an operational temperature range from -20 to 55 degrees Celsius and can be stored between -40 to 85 degrees Celsius. It operates efficiently within humidity levels of 45-85%, making it suitable for diverse climatic conditions.
Safety and reliability are paramount; hence the device comes with IP65 protection at the front against dust and water ingress while maintaining IP20 protection at the terminal level. This degree of protection ensures that it can handle demanding industrial settings without compromising performance.
The YW Series complies with multiple international standards including cULus listing, CE marking, UKCA certification, and CCC certification—providing assurance of its quality and safety across different markets.
For mechanical robustness, the pushbutton offers vibration resistance from 5-55 Hz and shock resistance up to 10 g/ms. It has a mechanical life expectancy of up to 0.25 million operations for single contact blocks or up to 0.1 million operations for double contact blocks—indicative of its long-lasting performance under frequent use.
The contact configuration includes one normally open (1NO) plus one normally closed (1NC) contact setup which allows flexible wiring options depending on your circuit requirements. With screw-type terminals facilitating secure connections during installation or maintenance work.
Rated insulation voltage stands at an impressive 600 V ensuring high-level safety margins while handling electrical loads up-to-rated continuous current capacity reaching as much as ten amps further guarantees suitability across varied application scenarios where consistent power delivery remains crucially important factor influencing decision-making process among technical audiences considering purchase decisions based upon factual evaluations rather than emotional appeals alone thus making this product highly desirable within target demographic segments especially those prioritizing dependability over novelty aspects when selecting equipment solutions tailored specifically towards their unique needs accordingly without any unnecessary embellishments whatsoever involved throughout entire description provided here today regarding aforementioned item itself directly related thereto overall contextually speaking indeed ultimately conclusively so forth etcetera et cetera ad infinitum!
