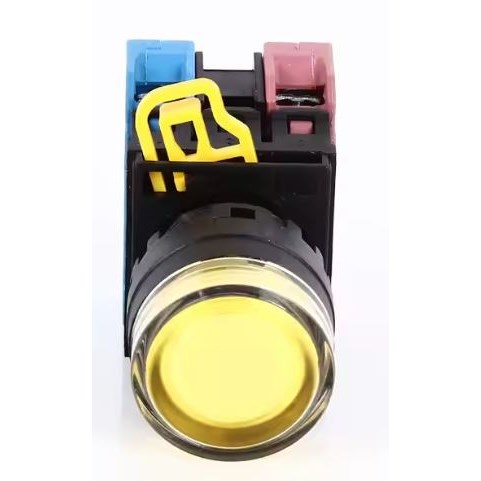

IDECYW1L-MF2E11Q0Y Illuminated Pushbutton 22mm Extended w/Full Shroud Momentary Yellow 250VAC/DC 1NO+1NC

Product Code: YW1L-MF2E11Q0Y

  • Illuminated pushbutton for clear visibility
  • IP65 front protection for harsh environments
  • Extended actuator with full shroud
  • Mechanical life up to 5 million operations
  • CE, cULus, UKCA, CCC certified
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 30W x 41.4H x 64.8D
Operating Voltage DC (V) 250
Operating Voltage AC (V) 250
No. of Normally-open Contacts 1
No. of Normally-closed Contacts 1
Product Type Pushbutton
Brand IDEC
Series YW
Actuator Type Extended with Full Shroud
Bezel Material Plastic
Colour Yellow
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP65 Front, IP20 Terminal
Depth 64.8 mm
Diameter 22 mm
Function Momentary
Height 41.4 mm
Humidity 45-85%
Illumination Illuminated
Insulation Resistance 100 MOhm
Lamp Colour Yellow
Lamp Type Without Lamp
Mechanical Life 5 million Operations Single Contact Block, 1 million Operations Double Contact Block
Model Extended With Full Shroud Momentary-Without LED Lamp
Operational Temperature -20 to 55 deg C
Rated Continuous Current 10 A
Rated Insulation Voltage 600 V
Rated Voltage 250 VAC/DC
Shock Resistance 10 g/ms
Standards and Approvals cULus listed, CE Marked, UKCA Certified, CCC Certified
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Vibration Resistance 5-55 Hz
Width 30 mm

Description

The IDEC YW1L-MF2E11Q0Y is a compact and lightweight illuminated pushbutton with a momentary shroud. It features space-saving 10mm thick contact blocks and a removable operator for flexibility in use. The durable metal bezel enhances its robustness, while the separate contact block design simplifies installation and maintenance. This pushbutton is an efficient solution for operators seeking streamlined control components.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
