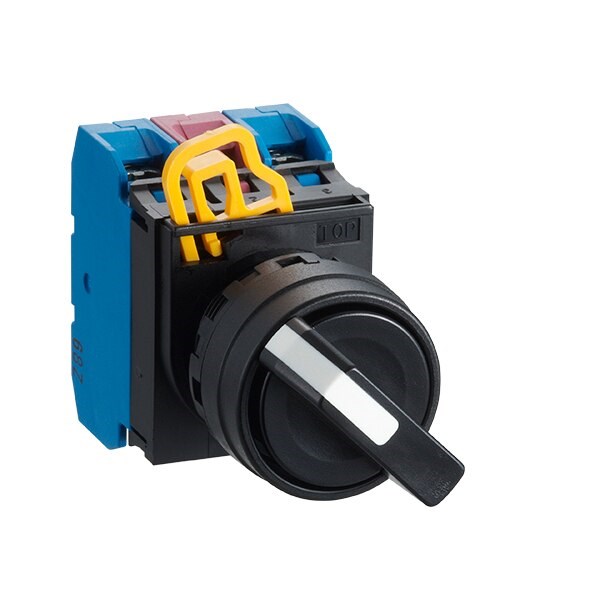

IDEC YW1S-21E20 Selector Switch 2Position 2NO Right Round Plastic M3.5 Screw Terminal 30mm W 41.4mm H 69.8mm D

Product Code: YW1S-21E20

  • Rated current of 10 A
  • Spring return operation mode
  • IP20/IP65 protection rating
  • Fits 22 mm mounting hole
  • Operates from -20 to 55°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Normally-open Contacts 2
Product Type Selector Switch
Brand IDEC
Series YW
Bezel Material Plastic
Bezel Shape Round
Contact Configuration 2NO
Degree of Protection IP20, IP65
Depth 69.8 mm
Height 41.4 mm
Insulation Resistance 100 MOhm
Mode of Operation Spring Return
Model Spring Return from Right
Mounting Hole Diameter 22 mm
Number of Positions 2
Operation Position Right
Operational Temperature -20 to 55 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Insulation Voltage 600 V
Standards and Approvals CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, UL508
Terminal Type M3.5 Screw
Tightening Torque 1 N-m
Width 30 mm

Description

The IDEC YW1S-21E20 Selector Switch is a compact and efficient solution for control operations, featuring a 2-position spring return mechanism. Its space-saving design includes 10mm thick contact blocks and a removable operator for ease of use. The lightweight construction and separate contact block ensure simple installation and removal, enhancing the switch's convenience and functionality in various applications.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
