Safety Interlocks


Product Code: 101122895

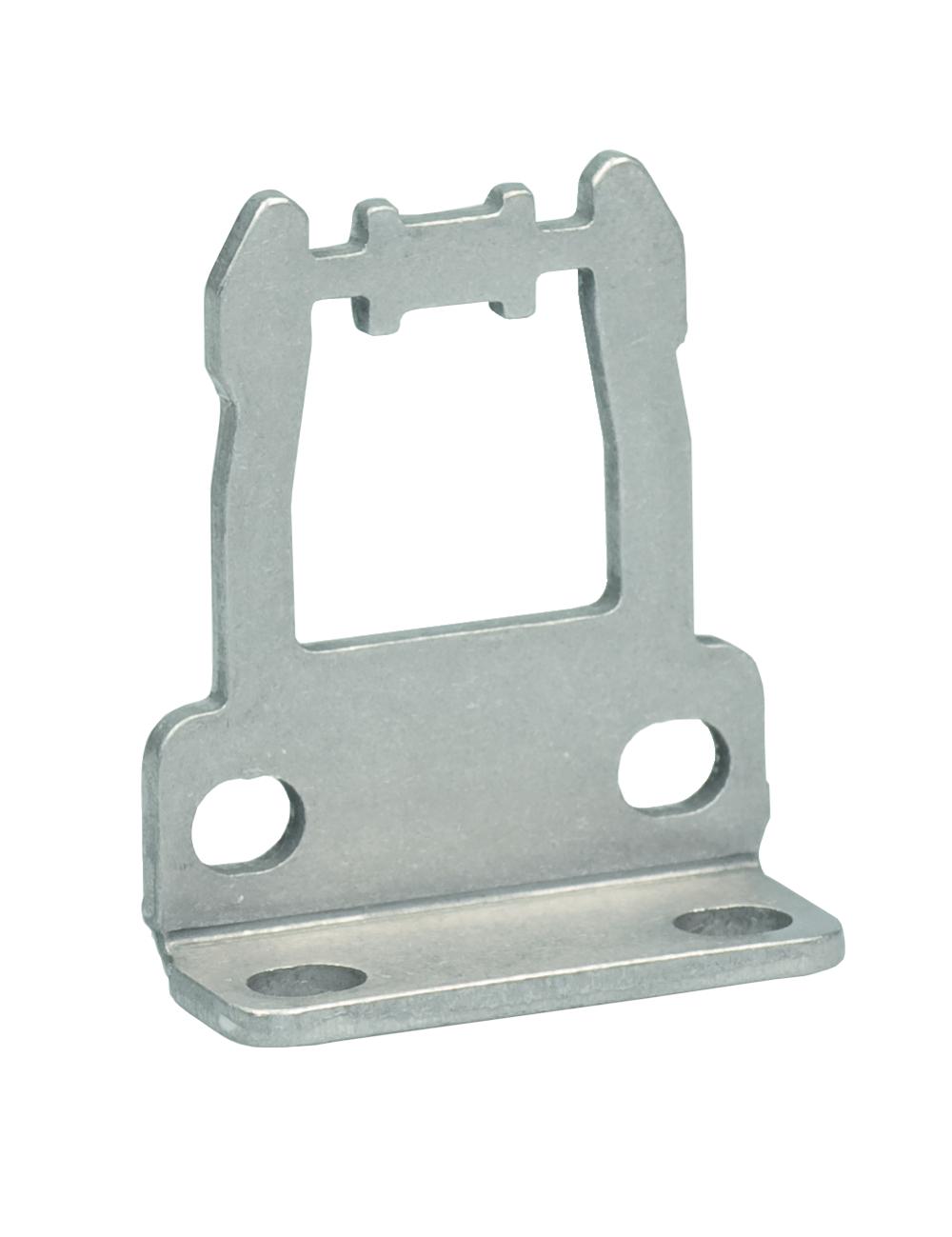

Enhance your machine safety with the Schmersal AZM170 series solenoid interlocks, featuring a robust angled actuator made from durable V2A stainless steel. Designed for reliability, this component boasts an actuating radius of 140 mm, ensuring secure locking and safe operation in various industrial applications. Trust in Schmersal's commitment to safety and quality with their specialized machine safety solutions.

Technical Specifications

Actuator Type Magnet
Cable Note All indications including the conductor ferrules.
Coding Level According to EN ISO 14119 Low
Contact Material Silver
Degree of Protection IP65
EAN 4030660000000
eCl@ss Number, Version 11.0 27-27-26-01
eCl@ss Number, Version 9.0 27-27-06-01
Enclosure Coating Material Painted
Enclosure Material Aluminium
ETIM 6.0 EC000030
ETIM 7.0 EC002887
Explosion Protection Category 3D | 3G
Gross Weight (g) 20
Height (mm) 98
Housing Construction Form Norm construction design
Installation Conditions Arbitrarily
Maximum Actuating Speed (m/s) 0.5
Maximum Ambient Temperature (°C) 80
Maximum Cable Cross Section (mm²) 2.5
Maximum Fuse Rating 6 A gG D-fuse
Maximum Switching Capacity (W) 10
Minimum Actuating Speed (mm/min) 120
Minimum Ambient Temperature (°C) -25
Minimum Cable Cross Section (mm²) 0.34
Minimum Mechanical Life 1000000 Operations
Minimum Positive Break Force (N) 20
Mounting Type Snaps onto standard DIN rail to EN 60715
Net Weight (g) 275
No. of Auxiliary Contacts 1
No. of Safety Contacts 2
Overvoltage Category 3
Pollution Degree 2
Protection Class of Operating Resource 3
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 400
Rated Operating Current (mA) 50
Rated Short-circuit Current (A) 1000
Recommended Safety Switchgear PROTECT PSC1 | SRB-E-301ST | SRB-E-201LC
Resistance to Shock (g/ms) 110 / 4 - 30 / 18
Sensor Height (mm) 171
Sensor Length (mm) 30
Series AZM170
Standards EN IEC 60947-5-1
Storage Temperature (°C) -40 to 85
Switching Element 1 NO contact, 2 NC contacts
Switching Principle Slow action
Terminal Type Connector
Utilisation Category AC-15
Utilisation Category DC-13 0.05 A
Width (mm) 22.5
Wire Cross-Section 0.25 mm
Working Principle Magnetic drive
