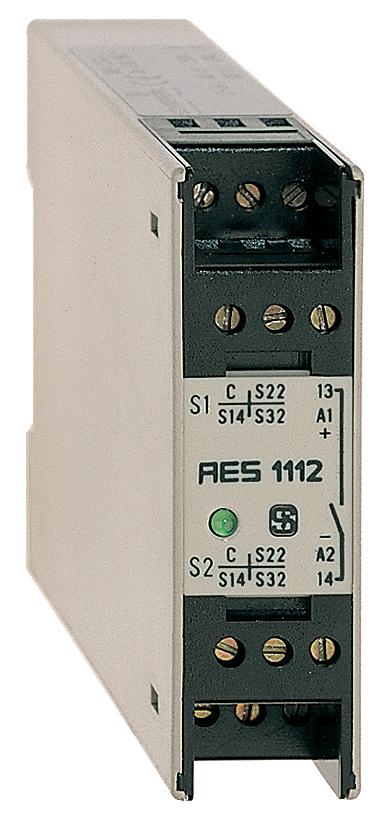

SCHMERSAL AES1112 (24VDC) SAFETY-MONITORING MODULE 101128982

Product Code: 101128982

Enhance your machine safety with the Schmersal AES series safety-monitoring module, designed for critical stop-category 0 applications. This robust module features wire breakage detection and an automatic reset function that activates after any disconnection of supply voltage. It simplifies troubleshooting with integral system diagnostics and a single LED indicator. The unit includes two openers, one shutter, and one safety contact to ensure reliable integration into your safety systems. Operating at a rated voltage of 24 VDC with a low power consumption of just 2.4 W, it meets utilisation categories AC-15 (230 VAC at 3 A) and DC-13 (24 VDC at 2 A), making it versatile for various industrial applications. Trust in Schmersal's commitment to machine safety with this efficient and dependable monitoring solution.

Technical Specifications

Actuator Type Magnet
Enclosure Material Plastic, glass-fibre-reinforced
Gross Weight (g) 25
Net Weight (g) 45
Installation Conditions Not flush
Wire Cross-Section 13 AWG
Enclosure Coating Material Painted
Maximum Temperature (°C) 60
Minimum Ambient Temperature (°C) -30
Minimum Temperature (°C) -25
Brand SCHMERSAL
Series AES
Working Principle Mechanical
Housing Construction Form Norm construction design
EAN 4030660000000
eCl@ss Number, Version 9.0 27-37-12-43
Coding Level According to EN ISO 14119 Low
ETIM 7.0 EC000223
ETIM 6.0 EC001029
eCl@ss Number, Version 11.0 27-27-26-01
Protection Class of Operating Resource 3
Cable Note All indications including the conductor ferrules.
Maximum Ambient Temperature (°C) 75
Maximum Cable Cross Section (mm²) 1.5
Minimum Cable Cross Section (mm²) 0.75
Mounting Type 2 x M5, Cylinder head screw
Storage Temperature (°C) -25 to 70
Contact Material Silver-plated Cu rivets
Maximum Actuating Speed (m/s) 1
Maximum Fuse Rating 6 A gG D-fuse
Minimum Actuating Speed (mm/min) 60
Minimum Mechanical Life 100000 Operations
Minimum Positive Break Force (N) 17
No. of Auxiliary Contacts 1
No. of Safety Contacts 2
Nominal Power (W) 2.4
Overvoltage Category 3
Rated Impulse Withstand Voltage (kV) 2.5
Rated Insulation Voltage (V) 300
Rated Maximum Operational Voltage DC (V) 24
Rated Short-circuit Current (A) 1000
Switching Element NC contact, NO contact
Switching Principle Slow action
Terminal Type Screw terminals M20 x 1.5
Height (mm) 100
Utilisation Category DC-13 | AC-15
Width (mm) 67.5
Utilisation Category DC-13 2.5 A
Sensor Length (mm) 57
Sensor Height (mm) 95.1
Degree of Protection IP20
Pollution Degree 3
Standards EN IEC 61496-1 / EN IEC 61496-2
