Brand	SCHMERSAL
Actuator Type	Magnet
Cable Note	All indications including the conductor ferrules.
Coding Level According to EN ISO 14119	Low
Contact Material	Silver
Degree of Protection	IP65
EAN	4030660000000
eCl@ss Number, Version 11.0	27-37-12-43
eCl@ss Number, Version 9.0	23-13-01-03
Enclosure Material	Aluminium
ETIM 6.0	EC001029
ETIM 7.0	EC002593
Gross Weight (g)	35
Housing Construction Form	Norm construction design
Maximum Actuating Speed (m/s)	1
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	2 x 2.5
Maximum Fuse Rating	10 A gG D-fuse slow blow
Minimum Actuating Speed (mm/min)	24
Minimum Ambient Temperature (°C)	-15
Minimum Cable Cross Section (mm²)	0.75
Minimum Mechanical Life	1000000 Operations
Minimum Positive Break Force (N)	20
Net Weight (g)	55
No. of Auxiliary Contacts	1
No. of Safety Contacts	1
Overvoltage Category	3
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	500
Rated Short-circuit Current (A)	1000
Resistance to Shock (g/ms)	30 / 11
Sensor Height (mm)	171.5
Sensor Length (mm)	38
Standards	EN IEC 61496-1 / CLC/TS 61496-2
Storage Temperature (°C)	-25 to 85
Switching Element	NC contact, NO contact
Switching Principle	Slow action
Terminal Type	Screw terminals M20 x 1.5
Utilisation Category	DC-13 \| AC-15
Utilisation Category DC-13	0.25 A
Wire Cross-Section	0.34 mm
Working Principle	Electromechanical

Safety Interlocks

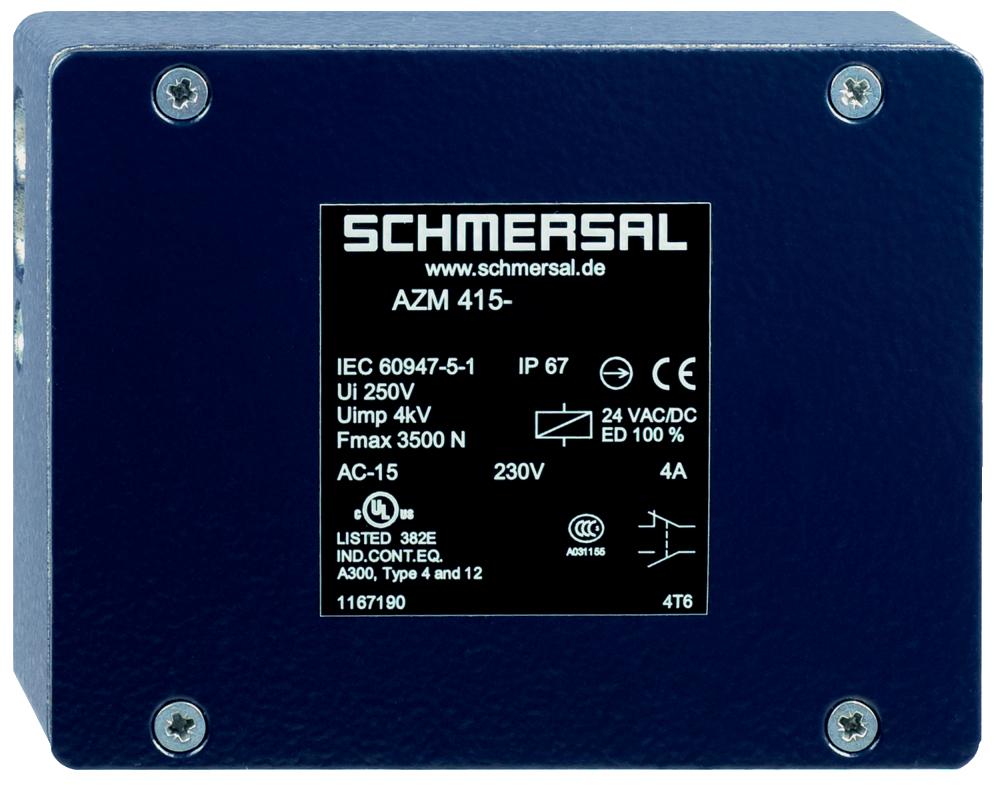

SCHMERSAL ENCLOSED SAFETY SOLENOID INTERLOCK 101152789
