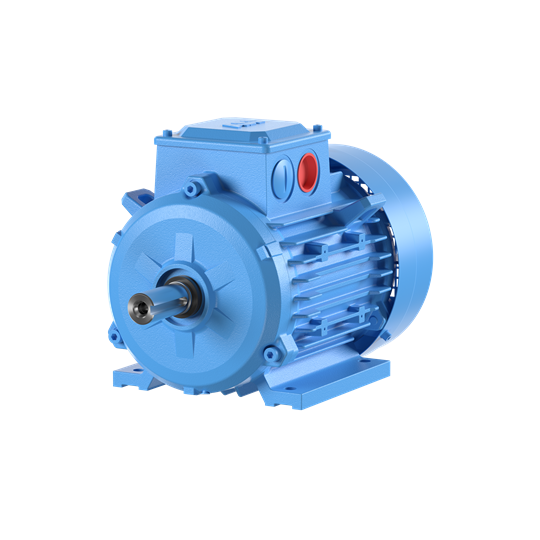

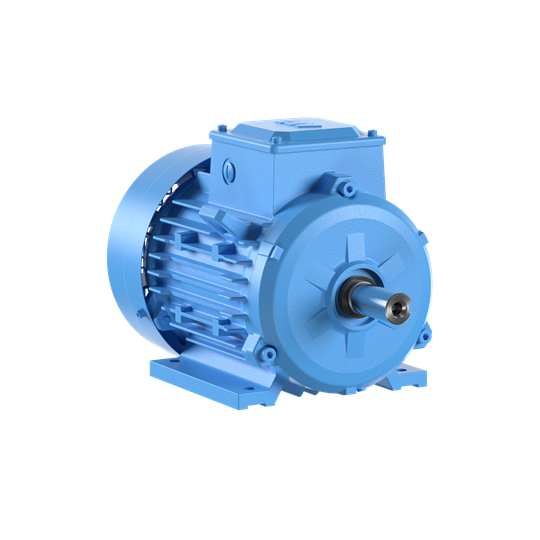

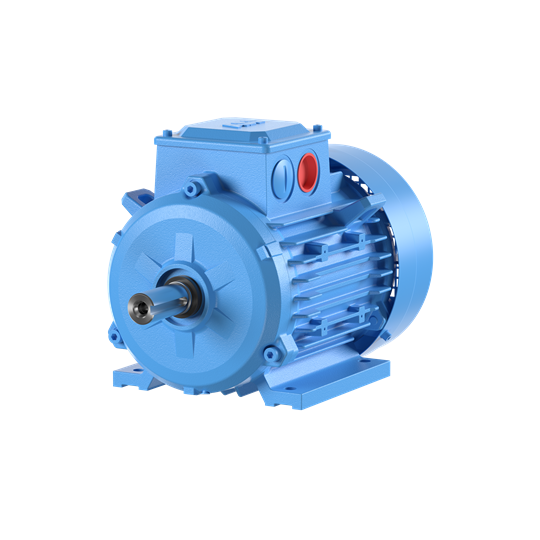

ABB 3GBA112410-ADD Low Voltage Motor IEC 112 Cast Iron 4P 3PH 4kW 400V B3 Foot Mount IP55

Product Code: 3GBA112410-ADD

  • 4 kW motor with 400 V rated voltage
  • IP55 protection for harsh environments
  • Efficient operation with 88.6% efficiency
  • B3 foot mount for secure installation
  • Operates at a speed of 1443 RPM
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Single-Speed General Performance Low Voltage Motor
Brand ABB
Ambient Temperature 40 deg C
Colour Munsell Blue
Connection Type DELTA - 415V in D & 690V in Y
Degree of Protection IP55
Depth 456 mm
Efficiency 88.6%
Frame Size IEC 112
Height 252 mm
Insulation Class ICLF
Material Cast Iron
Mounting Type B3 Foot Mount
Number of Poles 4
Phase 3
Power Factor 0.82
Rated Current 7.91 A
Rated Frequency 50 Hz
Rated Power 4 kW
Rated Voltage 400 V
Rotation Direction Both Sides
Sound Level 56 dBA
Speed Rating 1443 RPM
Torque Rating 26.59 N-m
Weight 50 kg
Width 230 mm

Description

<p>When considering a reliable and robust solution for your industrial or commercial motor needs, the General Performance Motor offers a well-rounded set of features tailored to meet demanding applications. Designed with practicality in mind, this motor is engineered to deliver consistent performance across various environments.</p><p>Operating at a rated voltage of 400 V and a frequency of 50 Hz, it draws a current of 7.91 A while providing an impressive rated power output of 4 kW. This makes it suitable for medium-duty operations requiring steady power delivery. The IP55 degree of protection ensures that the motor is safeguarded against dust ingress and water jets from any direction, making it ideal for harsh working conditions.</p><p>The motor&amp;#39;s construction features durable cast iron material, contributing to its weight of 50 kg. Its dimensions—230 mm in width, 252 mm in height, and 456 mm in depth—allow for easy integration into existing systems without compromising on space efficiency. The B3 foot mount configuration further simplifies installation processes.</p><p>In terms of operational efficiency, this motor boasts an efficiency rating of 88.6%, which translates to reduced energy consumption and cost savings over time. Coupled with a power factor of 0.82, users can expect optimal electrical performance with minimal losses.</p><p>The torque rating stands at 26.59 N-m while maintaining a speed rating of 1443 RPM, ensuring smooth operation under varying load conditions. Its capability to rotate in both directions adds versatility to its application range.</p><p>Noise levels are kept at bay with a sound level measurement of just 56 dBA, promoting quieter work environments—a crucial factor when installed within noise-sensitive areas.</p><p>Designed to withstand ambient temperatures up to 40&amp;#176;C without compromising performance or safety standards thanks to its insulation class ICLF—the motor guarantees longevity even under continuous operation scenarios.</p><p>Finished in Munsell Blue for easy identification and compliance with industry color codes—it aligns well aesthetically within professional settings while fulfilling technical requirements seamlessly.</p><p>This General Performance Motor encapsulates reliability through its thoughtful design choices—from materials used down to operational specifications—making it an excellent choice for those seeking dependable machinery solutions across Australia’s diverse industrial landscape without unnecessary frills or complexities typically associated with more specialized equipment offerings.</p>
