Specifications

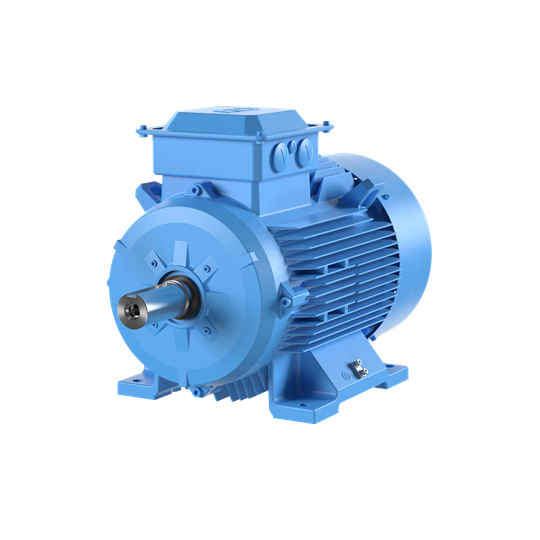

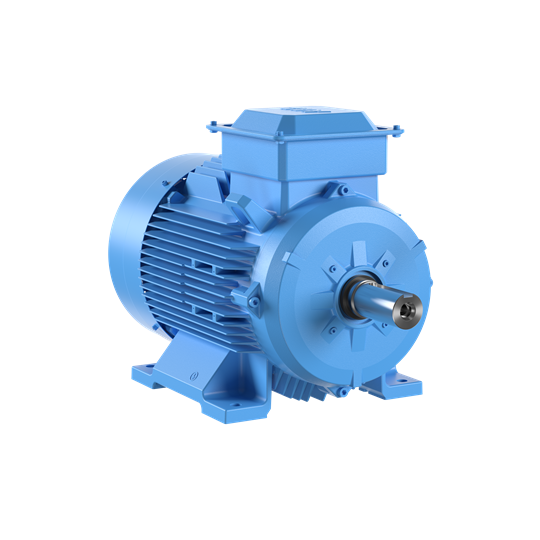

Product Type	General Performance - Cast Iron Motors
Brand	ABB
Colour	Blue
Connection Type	DELTA - 400 V in D & 690 V in Y
Degree of Protection	IP66
Dimensions	970 mm x 500 mm x 715 mm
Efficiency	IE3
Frame Size	200
Rated Power	30 kW
Weight	271 kg
Motor Poles	2
Motor Speed	3000 RPM
Mounting Method	Foot-mounted, term. box top, IM B3, IM 1001
