Specifications

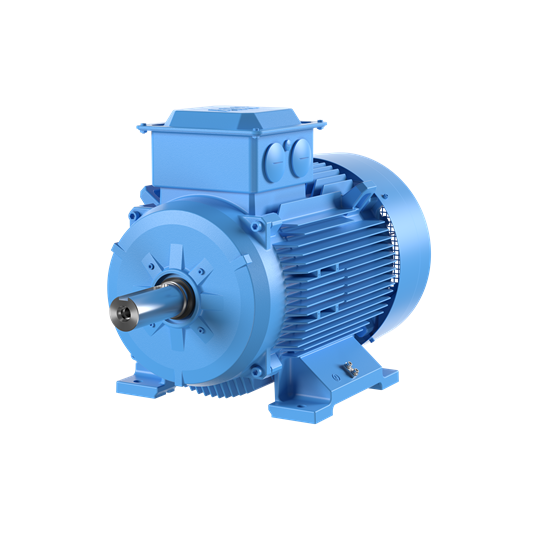

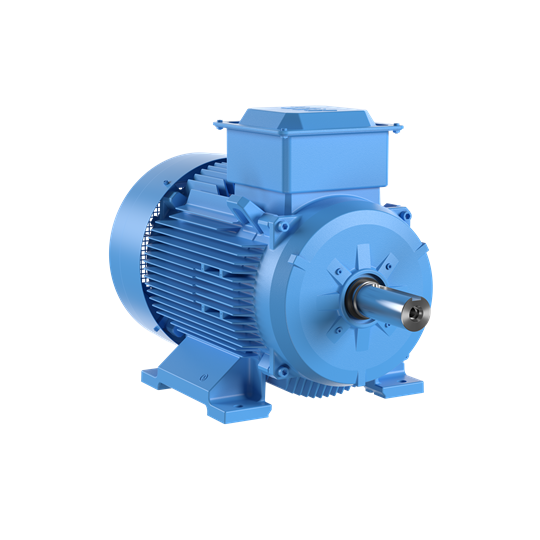

Product Type	3-Phase squirrel cage motor
Brand	ABB
Connection Type	DELTA - 415 V in D & 690 V in Y
Insulation Class	ICLF
Output Ratings	45 kW
Efficiency	IE3
Rated Frequency	50/60 Hz
Colour	Blue
Frame Material	Cast Iron
Frame Size	225
Motor Poles/Speed	2P / 3000 RPM
Mounting	Foot-mounted, term. box top, IM B3, IM 1001
Type of Duty	S1
Depth	882 mm
Height	585 mm
Weight	278 kg
Width	480 mm
IP Rating	IP55
Standards and Approvals	IEC 60034-30-1
