Specifications

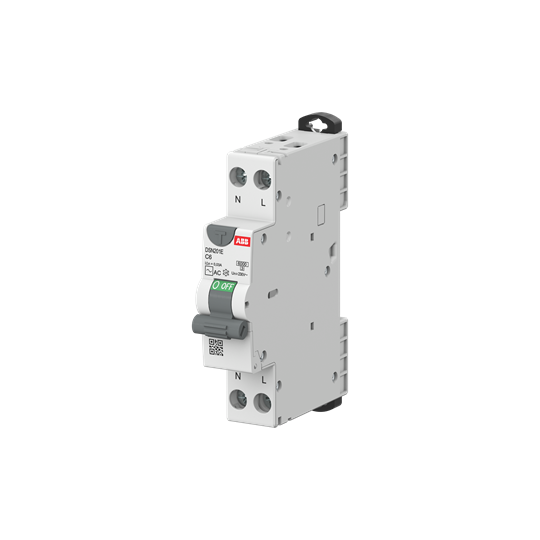

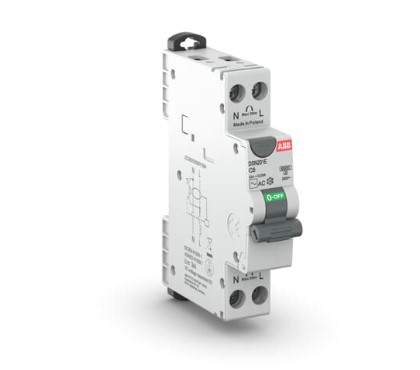

Product Type	Residual Current Breaker with Over-Current (RCBO)
Brand	ABB
Series	DSN201E
Ambient Temperature	-25....+55°C
Cable Cross Section	1-25 sq-mm 1-Solid Core, 1-16 sq-mm 4-Multi-Wired
Connecting Capacity	Busbar 10 mm² Rigid 1-25 mm² Flexible 1-16 mm²
Contact Position Indication	Green/red indication on toggle
Curve Type	C
Degree of Pollution	2
Degree of Protection	Terminals IP20 Housing IP40
Depth	70 mm
Dielectric Test Voltage	2.5 kV
Earthing Switch Type	Undelayed
Electrical Durability	10000 cycle
Energy Limiting Class	3
Fault Detection	Earth leakge /Overloads/Short circuit currents
Height	86 mm
Housing Colour	RAL 7035 Grey
Mechanical Life	20000 cycle
Mounting Type	DIN-Rail
Number of Poles	1P+N
Operating Characteristic	Instantaneous
Overvoltage Category	III
Power Loss	3.1 W
Power Supply Connection	Top and bottom terminals
Rated Current	16 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	500 VAC/DC
Rated Short Circuit Current	6 kA
Rated Voltage	230/240 V
Residual Current Type	A
Standards and Approvals	IEC 61009-1 IEC 61009-2-2 AS/NZS 61009.1
Terminal Type	Fail-safe cage terminals
Test Voltage	160-264 V
Tightening Torque	1.2 Nm
Trip Curve	C Curve
Weight	119 g
Width	17.8 mm
Wire Stripping Length	13 mm
