Specifications

Product Type	CURRENT TRANSFORMER
Brand	IPD
Series	3 IN 1 CT
Accuracy Class	1
Calibrated	No
Compatibility	Standard
Depth	37 mm
Function	Current Measurement
Height	65 mm
Insulation Class	IEC 61869-1/2
IP Rating	IP20
Model	IPD3PHCT18150
Storage Temperature	-25°C - +70°C
Weight	0.38 kg
Width	115 mm
Conformity to standard	IEC 61869-1/2
Current Ratio	150/5
Operating Temperature	-5°C - +50°C
Rated Primary Current	150A
Rated Secondary Current	5A
Rated operating frequency	50 Hz
Max. Operating voltage	0.72 kV
Rated Secondary Apparant Power (VA)	1.25
Number of primary input	3
Over current limiting factor	FS 5
Type of connection	Terminal block
Mounting	Clip-on DIN rail fastener or 2 screw on metal feet
Secondary connection	Screw
Opening Diameter	18 mm
Dimension Diagram	See datasheet

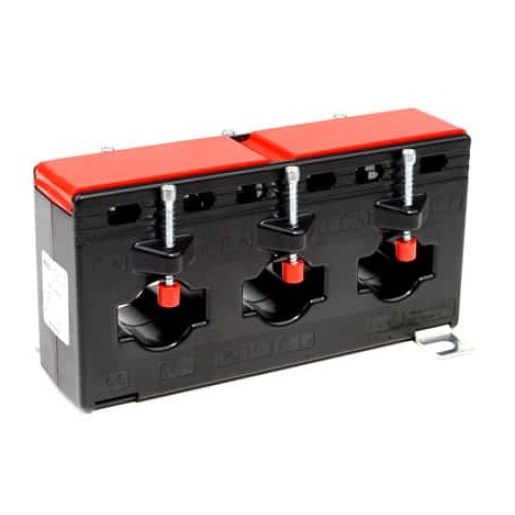

IPD IPD3PHCT18150 3-IN-1 CT 150/5A 1.25VA Cl.1 CABLE DIA 18MM 115x65x37
