Specifications

Product Type	CURRENT TRANSFORMER
Brand	IPD
Series	SPLIT CORE CT
Accuracy Class	3
Calibrated	No
Compatibility	Standard
Depth	58 mm
Height	106 mm
Insulation Class	IEC 61869-2
IP Rating	IP20
Model	IPDSPCT23100
Storage Temperature	-25°C - +70°C
Weight	0.54 kg
Width	93 mm
Operating Temperature	-5°C - +40°C
Rated Primary Current	100A
Rated Secondary Current	5A
Rated operating frequency	50Hz
Max. Operating voltage	0.72 kV
Rated Burden (VA)	1.25
Number of primary input	1
Over current limiting factor	FS 5
Mounting	Screw on metal feet
Secondary connection	Screw
Dimension Diagram	See datasheet
Rated Cross section	23 x 33 mm

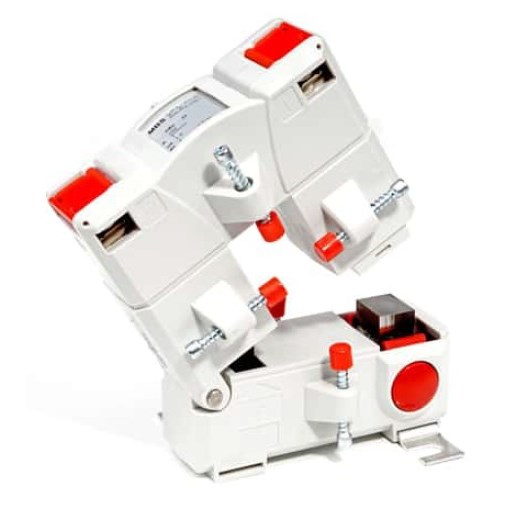

IPD IPDSPCT23100 SPLIT CORE CT 100/5A 1.25VA Cl.3 FRAME 23 20x30mm
