Specifications

Product Type	CURRENT TRANSFORMER
Brand	IPD
Series	SPLIT CORE CT
Accuracy Class	0.5
Calibrated	No
Compatibility	Standard
Depth	79 mm
Height	243 mm
Insulation Class	IEC 61869-2
IP Rating	IP20
Model	IPDSPCT8164000
Storage Temperature	-25°C - +70°C
Weight	3.5 kg
Width	195 mm
Operating Temperature	-5°C - +40°C
Rated Primary Current	4000A
Rated Secondary Current	5A
Rated operating frequency	50Hz
Max. Operating voltage	0.72 kV
Rated Burden (VA)	15
Number of primary input	1
Over current limiting factor	FS 20
Mounting	Screw on metal feet
Secondary connection	Screw
Dimension Diagram	See datasheet
Rated Cross section	85 x 165 mm

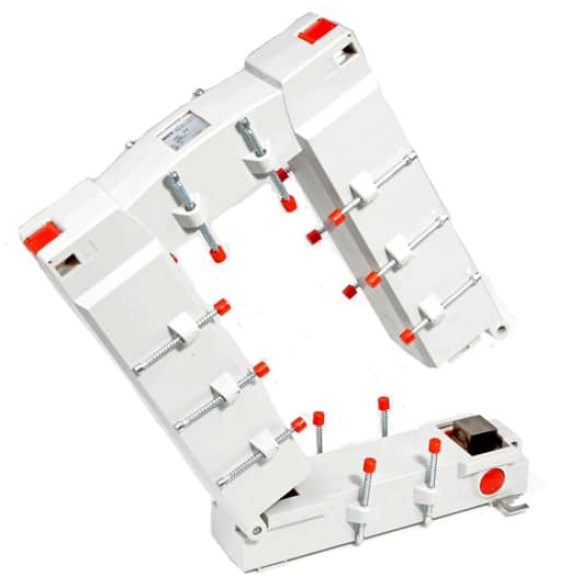

IPD IPDSPCT8164000 SPLIT CORE CT 4000/5A 15VA Cl.0.5 FRAME 816 85x165mm
