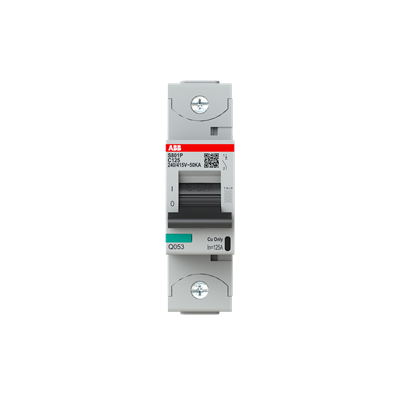

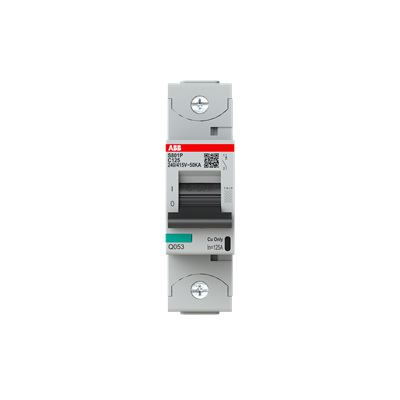

<p>The S800P series MCB is a robust choice for industrial and commercial applications, designed to meet rigorous standards while ensuring reliable performance. This miniature circuit breaker (MCB) is rated for a current of 125 A, making it suitable for high-demand environments. It can withstand impulse voltages up to 6 kV and has an insulation voltage rating of 690 V, providing dependable protection against electrical surges and faults.</p><p>Operating at a rated voltage of 230/400 VAC, the S800P series offers flexibility across various systems. Its power loss is maintained at a minimal 9.4 W, optimizing energy efficiency without compromising safety or functionality. The device features a single pole configuration with an impressive breaking capacity of 50 kA, ensuring swift interruption in case of overcurrent scenarios.</p><p>With an IP20 degree of protection, the MCB guards against solid foreign objects greater than 12 mm in diameter. It supports safe operation with a tightening torque requirement of 3.5 N-m and accommodates both flexible (1-50 sq-mm) and rigid (1-70 sq-mm) connecting capacities. The wire stripping length is set at 19 mm to facilitate secure connections.</p><p>The compact design measures just 27 mm in width, standing at a height of 95 mm and depth of 82.5 mm—ideal for space-constrained installations on DIN Rails. Weighing only 0.245 kg, its lightweight nature simplifies handling during installation or maintenance processes.</p><p>Engineered according to IEC/EN 60947-2 and UL 1077 standards, this MCB adheres to international quality benchmarks for safety and reliability. Its short-circuit capacity stands at an effective level of up to 15 kA under specified conditions.</p><p>The device operates effectively within ambient temperatures ranging from -25&#176;C to +60&#176;C, adaptable to diverse climatic conditions typical in Australian industrial settings. With a curve type C characteristic, it provides optimal tripping response suited for general-purpose applications where moderate starting currents are expected.</p><p>This product&#39;s mounting type is standard DIN Rail—ensuring easy integration into existing panel systems without additional modifications required—and supports operational frequencies between the range of both common industrial frequencies: either at standard frequency ranges like those found globally: namely either within fifty Hertz cycles per second or sixty Hertz cycles per second as needed depending upon local supply characteristics present wherever installed worldwide too!</p><p>Overall offering pragmatic solutions tailored towards meeting specific needs faced by professionals seeking reliable equipment choices backed by proven track records across varied use cases encountered daily throughout industry sectors today!</p>
