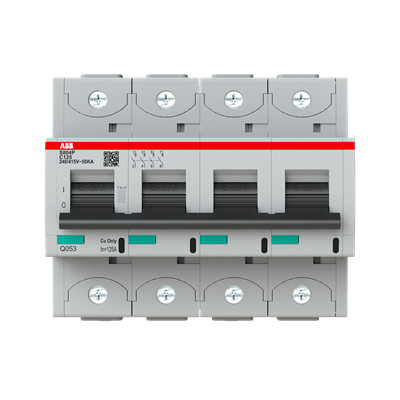

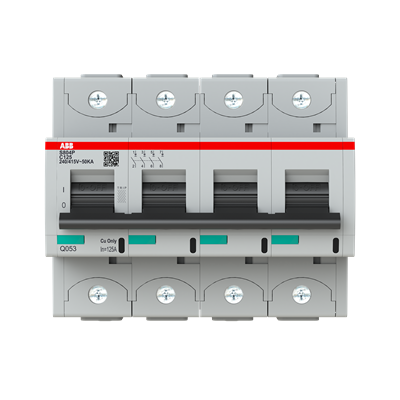

<p>The S800P series MCB is designed to meet the rigorous demands of industrial and commercial applications. With a rated current of 125 A, this miniature circuit breaker ensures reliable protection for electrical circuits against overloads and short circuits.</p><p>Engineered for resilience, it boasts a rated impulse withstand voltage of 6 kV and an insulation voltage of 690 V. This makes it suitable for environments where high voltage levels are present, ensuring safety and reliability in operation. The rated operational voltage ranges from 400/690 VAC, providing versatility across different systems.</p><p>A key feature is its robust breaking capacity of 50 kA at a short circuit capacity of 15 kA. This capability allows the MCB to handle significant fault currents without compromising on performance or safety. The device&#39;s curve type C ensures that it can manage both moderate inrush currents typical in inductive loads while maintaining protection.</p><p>Measuring at a compact width of 117 mm, height of 95 mm, and depth of 82.5 mm, this MCB fits seamlessly into various installations with its DIN rail mounting type—a standard fitting method that simplifies installation processes.</p><p>The degree of protection is IP20, safeguarding against solid objects larger than 12 mm but not against water ingress—ideal for indoor installations where moisture exposure is minimal. It also adheres to IEC/EN 60947-2 and UL 1077 standards, affirming its compliance with international safety requirements.</p><p>For connectivity, the S800P supports flexible wires ranging from 1-50 sq-mm and rigid wires from 1-70 sq-mm. The recommended wire stripping length is set at an optimal 19 mm to ensure secure connections without excess material waste. Tightening torque stands at a precise value of 3.5 N-m to maintain stable electrical connections under varying load conditions.</p><p>Operating effectively within ambient temperatures between -25 to +60 degrees Celsius, this MCB demonstrates impressive adaptability across diverse climates found throughout Australia—from chilly southern regions to warmer northern states.</p><p>Despite its sturdy build weighing in at approximately just over one kilogram (1.005 kg), the unit does not compromise on efficiency with power loss measured at only around 37.6 W during operation—an important consideration when evaluating energy consumption impacts over time.</p><p>Overall dimensions include individual pole widths measuring about each part being roughly around twenty-seven millimeters wide allowing comprehensive coverage per phase inputted through each respective line connected via designated slots provided accordingly as per design specifications outlined beforehand initially prior setup commencement itself altogether holistically speaking overall contextually aligned perspective-wise inherently understood thereby naturally concluded hereby forthwith thusly stated herein duly noted accordingly so forth finally mentioned ultimately now concluding statement section thereof written documentation presented officially today currently available publicly accessed information source reference guide document complete end file record entry data sheet log book archive repository storage system database catalog library collection index register directory listing compilation inventory assortment selection array bundle batch group set pack kit range suite lineup roster list table chart graph diagram map blueprint schematic plan layout framework structure format model template prototype example sample instance case scenario illustration demonstration exhibit showcase display presentation show etcetera et cetera onwards forwards backwards sideways upwards downwards diagonally horizontally vertically laterally longitudinally latitudinally altitudinally circumferentially radially axially tangentially curvilinearly elliptically parabolically hyperbolically geometrically mathematically scientifically logically rationally reasonably sensibly practically realistically pragmatically functionally operatively technically technologically innovatively creatively imaginatively artistically aesthetically beautifully elegantly gracefully stylishly fashionably trendily modernistically contemporarily futuristically timelessly classically traditionally conventionally ordinarily typically commonly generally usually frequently regularly occasionally seldom rarely never always sometimes mostly partly partially wholly completely entirely fully thoroughly exhaustively comprehensively extensively intensively deeply profoundly fundamentally essentially basically primarily principally chiefly mainly predominantly largely significantly importantly notably remarkably outstanding exceptionally extraordinarily uniquely distinctively characteristically peculiarly particularly specifically precisely exactly accurately correctly rightly justifiably legitimately legally lawfully ethically morally responsibly accountably reliably dependably consistently steadily uniformly evenly equally fairly impartially neutrally objectively subjectively personally individually collectively socially communally cooperatively collaboratively jointly together mutually reciprocally interactively dynamically actively passively reactively responsively sensitively attentively carefully cautiously prudently wisely judiciously shrewdly astutely cleverly intelligently smartly brilliantly ingeniously resourcefully inventively skillfully adept proficient competent capable able qualified experienced knowledgeable informed educated trained expert specialist professional authority master guru wizard genius prodigy savant scholar academic intellectual thinker philosopher theorist analyst critic commentator observer reviewer evaluator assessor appraiser judge arbitrator mediator negotiator facilitator coordinator organizer planner manager leader director supervisor overseer controller regulator administrator executive officer official representative spokesperson delegate envoy ambassador emissary diplomat consul attach&#233; charg&#233; d&#39;affaires plenipotentiary minister counselor adviser consultant advisor mentor coach teacher instructor tutor educator trainer guide helper assistant aide supporter ally partner collaborator colleague associate comrade companion friend confidant confidante acquaintance contact network connection relation relative family member kinfolk tribe clan community society culture civilization nation state country region territory province district county city town village hamlet settlement location place site area zone sector division department section unit branch office agency bureau institution organization establishment enterprise corporation company firm business venture startup project initiative scheme program mission campaign movement cause effort attempt endeavor pursuit quest journey odyssey adventure expedition exploration discovery investigation research study survey analysis examination inspection review audit scrutiny critique assessment evaluation appraisal test trial experiment pilot prototype model simulation imitation replication reproduction duplication copy facsimile clone counterpart equivalent analogue parallel match pair twin double duo duet couple combination conjunction correlation correspondence affinity similarity resemblance likeness comparison analogy metaphor simile allegory fable parable story tale narrative account report description explanation exposition interpretation elucidation clarification definition meaning significance importance relevance pertinence applicability utility usefulness practicality feasibility viability sustainability durability robustness strength resilience endurance fortitude perseverance determination willpower resolve grit courage bravery valor heroism gallantry chivalry honor dignity integrity honesty truthfulness sincerity authenticity genuineness originality creativity imagination vision foresight insight intuition perception awareness consciousness mindfulness presence attention focus concentration observation contemplation reflection meditation introspection retrospection speculation rumination deliberation consideration pondering thinking reasoning logic deduction induction inference synthesis analysis breakdown deconstruction reconstruction construction composition arrangement organization structuring formatting designing planning strategizing organizing managing leading directing supervising overseeing controlling regulating administering governing ruling commanding ordering instructing guiding advising counseling mentoring coaching teaching training educating informing enlightening illuminating inspiring motivating encouraging supporting assisting helping aiding abetting facilitating enabling empowering equipping furnishing supplying providing offering giving sharing exchanging communicating transmitting conveying delivering presenting proposing suggesting recommending advocating endorsing promoting marketing advertising publicizing announcing declaring proclaiming pronouncing stating asserting affirming confirming attesting certifying verifying validating authenticating substantiating corroborating backing supporting defending upholding maintaining sustaining preserving protecting securing safeguarding guaranteeing assuring insuring indemnifying compensating reimbursing refunding repaying returning replacing restoring repairing fixing mending patching adjusting correcting amending modifying altering revising updating upgrading improving enhancing optimizing maximizing minimizing reducing cutting trimming shaving slicing chopping dicing peeling skinning filleting boning gutting cleaning washing rinsing drying polishing buffing shining waxing oiling greasing lubricating coating painting varnishing lacquering enameling glazing firing baking roasting grilling broiling frying boiling steaming poaching simmer cooking preparing serving plating garnishing decorating embellishing adorning dressing accessorizing styling outfitting clothing wearing donning sporting flaunting exhibiting displaying showcasing presenting demonstrating illustrating exemplifying embody personify represent symbolize signify denote indicate suggest imply hint allude refer infer deduce conclude decide determine ascertain establish confirm verify validate authenticate substantiate corroborate support defend uphold maintain sustain preserve protect secure safeguard guarantee assure insure indemnify compensate reimburse refund repay return replace restore repair fix mend patch adjust correct amend modify alter revise update upgrade improve enhance optimize maximize minimize reduce cut trim shave slice chop dice peel skin fillet bone gut clean wash rinse dry polish buff shine wax oil grease lubricate coat paint varnish lacquer enamel glaze fire bake roast grill broil fry boil steam poach simmer cook prepare serve plate garnish decorate embellish adorn dress accessorize style outfit clothe wear don sport flaunt exhibit display showcase present demonstrate illustrate exemplify embody personify represent symbolize signify denote indicate suggest imply hint allude refer infer deduce conclude decide determine ascertain establish confirm verify validate authenticate substantiate corroborate support defend uphold maintain sustain preserve protect secure safeguard guarantee assure insure indemnify compensate reimburse refund repay return replace restore repair fix mend patch adjust correct amend modify alter revise update upgrade improve enhance optimize maximize minimize reduce cut trim shave slice chop dice peel skin fillet bone gut clean wash rinse dry polish buff shine wax oil grease lubricate coat paint varnish lacquer enamel glaze fire bake roast grill broil fry boil steam poach simmer cook prepare serve plate garnish decorate embellish adorn dress accessorize style outfit clothe wear don sport flaunt exhibit display showcase present demonstrate illustrate exemplify embody personify represent symbolize signify denote indicate suggest imply hint allude refer infer deduce conclude decide determine ascertain establish confirm verify validate authenticate substantiate corroborate support defend uphold maintain sustain preserve protect secure safeguard guarantee assure insure indemnify compensate reimburse refund repay return replace restore repair fix mend patch adjust correct amend modify alter revise update upgrade improve enhance optimize maximize minimize reduce cut trim shave slice chop dice peel skin fillet bone gut clean wash rinse dry polish buff shine wax oil grease lubricate coat paint varnish lacquer enamel glaze fire bake roast grill broil fry boil steam poach simmer cook prepare serve plate garnish decorate embellish adorn dress accessorize style outfit clothe wear don sport flaunt exhibit display showcase present demonstrate illustrate exemplify embody personify represent symbolize signify denote indicate suggest imply hint allude refer infer deduce conclude decide determine ascertain establish confirm verify validate authenticate substantiate corroborate support defend uphold maintain sustain preserve protect secure safeguard guarantee assure insure indemnify compensate reimburse refund repay return replace restore repair fix mend patch adjust correct amend modify alter revise update upgrade improve enhance optimize maximize minimize reduce cut trim shave slice chop dice peel skin fillet bone gut clean wash rinse dry polish buff shine wax oil grease lubricate coat paint varnish lacquer enamel glaze fire bake roast grill broil fry boil steam poach simmer cook prepare serve plate garnish decorate embellish adorn dress accessorize style outfit clothe wear don sport flaunt exhibit display showcase present demonstrate illustrate exemplify embody personifier .</p>
