Specifications

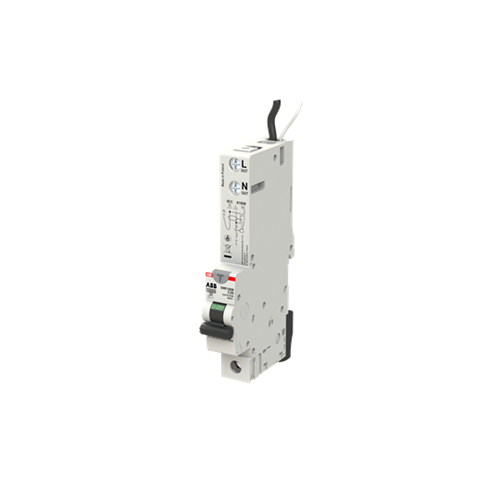

Product Type	Residual Current Breaker with Over-Current
Brand	ABB
Series	DME100M
Ambient Temperature	-5 to 55 deg C
Breaking Capacity	7.5 kA
Cable Cross Section	0.75-35 sq-mm 1-Solid-Core, 0.75-25 sq-mm 4-Multi-Wired
Connecting Capacity	Busbar 10 sq-mm, Rigid Top 1-16 sq-mm, Flexible Top 1-10 sq-mm, Rigid Bottom 1-35 sq-mm, Flexible Bottom 1-25 sq-mm
Curve Type	C
Degree of Pollution	IP2
Degree of Protection	IP20
Depth	70 mm
Earthing Switch Type	Undelayed
Electrical Durability	10000 Cycles
Energy Limiting Class	3
Height	125 mm
Number of Poles	1P+N
Operating Characteristic	Instantaneous
Overvoltage Category	III
Power Loss	2.76 W
Power Supply Connection	Bottom
Rated Current	20 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	440 V
Rated Short Circuit Current	30 mA
Rated Voltage	240 V
Residual Current Type	Type A
Short Circuit Capacity	10 kA
Standards and Approvals	IEC 61009-1, IEC 61009-2-2, AS/NZS 61009-1
Trip Curve	C Curve
Weight	0.235 kg
Width	17.8 mm
