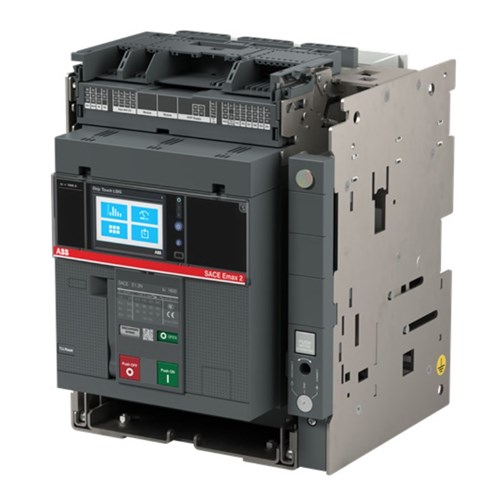

<p>When considering the essential components for your industrial or commercial electrical systems, a Motor Operated Air Circuit Breaker (ACB) like this one can be a reliable choice. Designed to handle demanding environments, this ACB is engineered to provide robust protection and operational efficiency.</p><p>With a rated current range from 500 to 1250 Amperes, it caters to various power needs while maintaining flexibility in application. The breaker boasts an impressive rated impulse withstand voltage of 12 kV and a rated insulation voltage of 1000 VAC, ensuring optimal performance even under high-voltage conditions. This makes it suitable for installations where reliability is paramount.</p><p>One of the standout features is its rated short time withstand current of 50 kA, which signifies its ability to endure substantial fault currents without compromising safety or functionality. Coupled with a breaking capacity of 66 kA, this ACB is adept at interrupting large fault currents efficiently and safely.</p><p>The trip unit integrated into this ACB is the Ekip Touch LSIG model. Known for its precision and versatility, this trip unit offers advanced protection functions including Long-time (L), Short-time (S), Instantaneous (I), and Ground Fault (G) protections. Such comprehensive protection ensures that your systems are safeguarded against various electrical faults.</p><p>This product operates at a rated voltage of up to 690 VAC and has been designed with three poles, making it suitable for three-phase applications commonly found in industrial settings. Its frame size E1.2 indicates a compact yet powerful design that fits seamlessly into existing setups without requiring extensive modifications.</p><p>Efficiency in energy usage is also considered with a power loss rating of just 244 W, highlighting its capability to perform effectively without unnecessary energy wastage—a crucial factor in managing operational costs over time.</p><p>Installation flexibility is enhanced by the horizontal rear spread terminal type configuration, allowing straightforward integration into existing panels or switchboards while adhering to IEC 309 standards for safety and performance compliance.</p><p>In summary, this Motor Operated ACB combines durability with advanced protective features tailored for rigorous industrial use cases. Whether you&#39;re upgrading an existing system or designing new infrastructure from scratch, these specifications ensure you have the necessary resilience and adaptability built-in from day one.</p>
