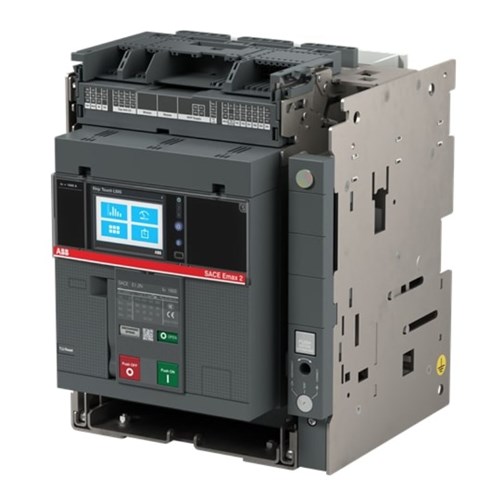

<p>When it comes to selecting a motor operated air circuit breaker (ACB) for industrial and commercial applications, understanding the technical specifications is crucial. This product offers a comprehensive set of features tailored to meet demanding electrical distribution needs.</p><p>This ACB operates with a rated current range of 320-800 A, making it suitable for medium-sized electrical installations. It is designed to handle high voltage levels with a rated impulse withstand voltage of 12 kV and an insulation voltage of up to 1000 VAC, ensuring robust performance in environments where electrical surges are common.</p><p>Safety and reliability are paramount in any electrical system. This ACB boasts a rated short time withstand current of 50 kA, providing confidence that it can endure significant fault conditions without compromising safety. Additionally, its breaking capacity stands at an impressive 66 kA, further emphasizing its capability to protect circuits from overloads or faults effectively.</p><p>The device operates on a maximum rated voltage of 690 VAC, which aligns well with many industrial power systems. It incorporates the Ekip Touch LSIG trip unit—a sophisticated component that enhances protection by offering long-time (L), short-time (S), instantaneous (I), and ground fault (G) protection functionalities. This ensures precise control over various fault scenarios and contributes significantly to minimizing downtime during maintenance or unexpected events.</p><p>Efficiency is another key aspect addressed by this breaker; it has a power loss rating of only 100 W. This characteristic not only aids in reducing operational costs but also supports sustainable energy practices within facilities aiming for reduced carbon footprints.</p><p>Designed with practicality in mind, the ACB features three poles and utilizes horizontal rear spread terminals—ideal for installations where space optimization is necessary while maintaining ease of access for wiring connections.</p><p>Conforming to IEC 309 standards and approvals guarantees that this product meets international benchmarks for quality and safety in electrical components. Its frame size E1.2 provides compact dimensions without sacrificing performance capabilities—an essential factor when integrating into existing panels or new setups requiring efficient use of space.</p><p>In summary, this motor operated ACB combines advanced protection features with robust construction suited for challenging environments typical within Australian industries. Whether you&#39;re upgrading existing infrastructure or designing new systems from scratch, these specifications provide assurance that you’re investing in dependable technology built around your operational needs.</p>
