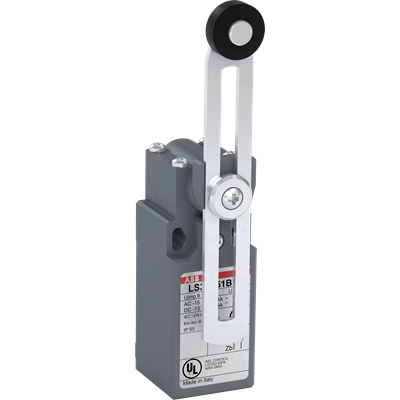

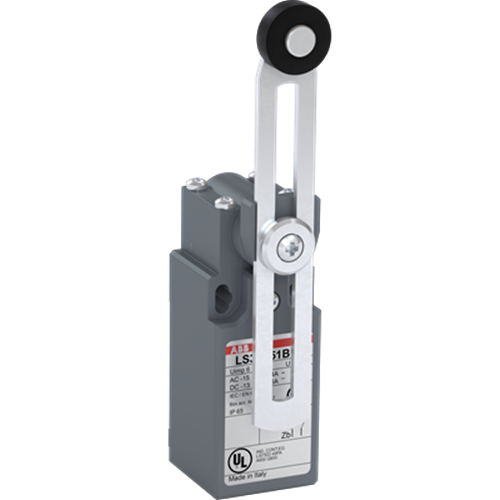

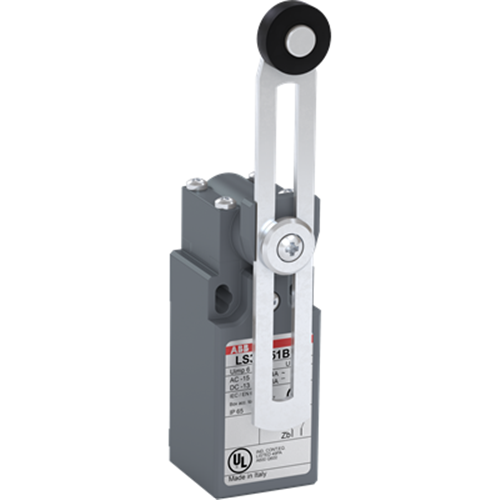

ABB LS33P51B11 Limit Switch 18mm Dia Adjustable Plastic Roller Lever 1NO-1NC 30mm W Plastic

Product Code: LS33P51B11

  • Rated for multiple currents: 3.1A, 10A, 5.5A, 3A
  • Compact design with dimensions of 45.5x30x98.5 mm
  • Durable plastic housing with IP65 protection
  • Operates in temperatures from -25 to 70°C
  • Long-lasting with 10 million operations durability
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Limit Switch
Brand ABB
Actuator Material Plastic
Actuator Type 18 mm Adjustable Roller Lever
Contact Configuration 1NO+1NC
Degree of Protection IP65
Height 98.5 mm
Housing Material Plastic
Length 45.5 mm
Mechanical Durability 10000000 Operations
Mounting Type 30 mm EN 50047
Operational Temperature -25 to 70 deg C
Rated Current 3.1 A, 10 A, 5.5 A, 3 A
Switching Type Snap Action
Weight 0.092 kg
Width 30 mm

Description

<p>When it comes to selecting a reliable and robust switch for your industrial or commercial applications, this product stands out with its solid specifications. Designed to meet the demanding needs of various technical environments, it offers a balanced combination of durability and functionality.</p><p>The switch operates at multiple rated currents: 3.1 A, 10 A, 5.5 A, and 3 A, making it versatile for different circuit requirements. Its mounting type is standardized at 30 mm EN 50047, ensuring compatibility with a wide range of setups.</p><p>Constructed from sturdy plastic, the housing material provides both durability and lightweight characteristics. This is complemented by an IP65 degree of protection rating, which guarantees resistance against dust ingress and low-pressure water jets from any direction—ideal for challenging industrial settings.</p><p>With an operational temperature range between -25 to 70 degrees Celsius, this switch can function effectively in diverse climates without compromising performance. It weighs just 0.092 kg and has compact dimensions measuring 45.5 mm in length, 30 mm in width, and a height of 98.5 mm—making installation straightforward even in space-constrained areas.</p><p>The contact configuration features one normally open (1NO) and one normally closed (1NC) contact setup that facilitates flexible control options within your systems. The switching type is snap action which ensures quick operation with minimal physical effort.</p><p>For actuation purposes, the switch employs an adjustable roller lever made from durable plastic with an actuator diameter of 18 mm—a design choice that enhances adaptability across varied applications while maintaining precision in operation.</p><p>One notable feature is its mechanical durability rated at ten million operations—a testament to its long-lasting performance capability under regular use conditions.</p><p>This combination of features makes this product a well-rounded choice for professionals seeking dependable components for their electrical engineering projects or automation systems without unnecessary complexity or cost overheads.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
