Specifications

Product Type	Miniature Circuit Breaker
Brand	ABB
Series	M300P
Ambient Temperature	-40 to 70 deg C
Curve Type	Magnetic D
Degree of Pollution	IP3
Depth	66.7 mm
Height	88 mm
Housing Colour	RAL 7036 Grey
Mounting Type	DIN Rail
Number of Poles	1
Rated Current	63 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	500 V
Rated Short Circuit Current	12.5 kA
Rated Voltage	240 V
Standards and Approvals	IEC/EN 60947-2
Tightening Torque	2.8 N-m
Weight	0.124 kg
Width	17.5 mm

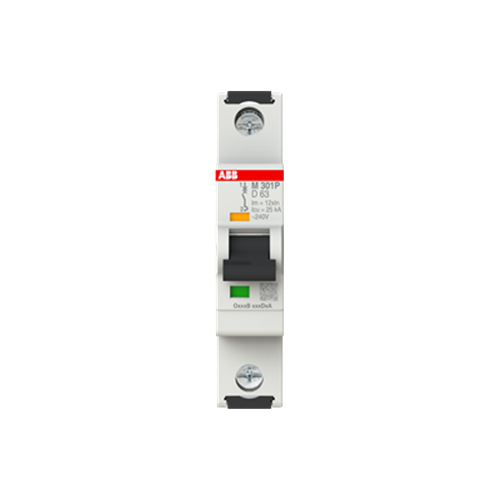

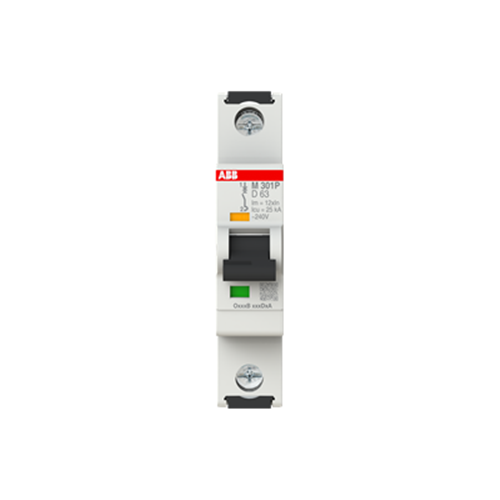

ABB M301PD63 Miniature Circuit Breaker 12.5 kA 1-P 63A 240V D-Magnetic Curve
