Specifications

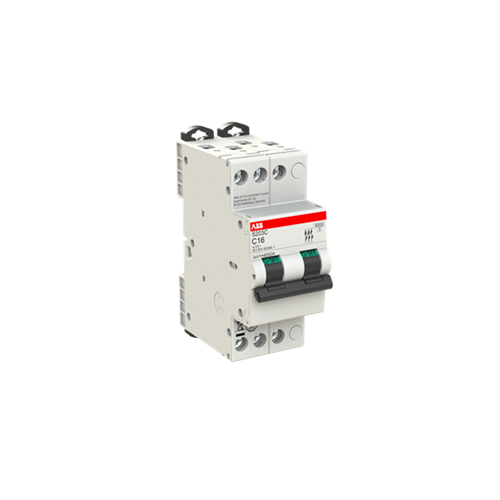

Product Type	Miniature Circuit Breaker
Brand	ABB
Series	S203C
Collection	S203C
Curve Type	C
Degree of Protection	IP20
Depth	70 mm
Electrical Durability	10000 Cycles
Height	86 mm
Impulse Voltage	4 kV
Number of Poles	3
Operational Temperature	-25 to 55 deg C
Rated Current	6 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Short Circuit Current	6 kA
Rated Voltage	400/415 VAC
Standards and Approvals	IEC/EN 60898-1
Trip Curve	C Curve
Width	36 mm
