Specifications

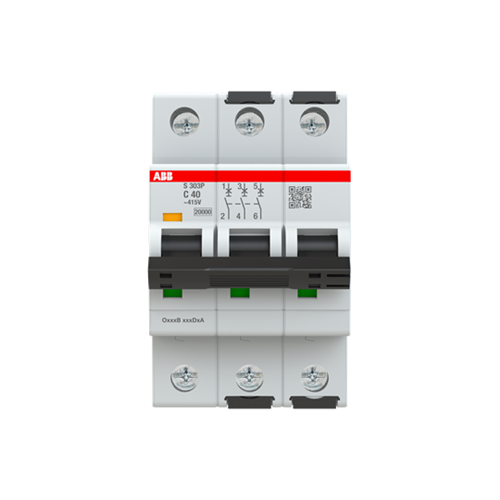

Product Type	Miniature Circuit Breaker
Brand	ABB
Series	S300P
Actuator Material	Insulation Group II, Black, Sealable
Ambient Temperature	-40 to 70 deg C Operation
Curve Type	C
Degree of Pollution	IP3
Degree of Protection	IP20/IP40
Depth	69 mm
Dielectric Test Voltage	2 kV
Electrical Durability	10000 Cycles
Height	88 mm
Housing Colour	RAL 7039 Grey
Housing Material	Insulation Group I, RAL 7039
Mounting Position	Any
Mounting Type	DIN Rail
Number of Poles	3
Overvoltage Category	IV
Power Loss	8.7 W
Power Supply Connection	Arbitrary
Rated Current	40 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	500 V
Rated Short Circuit Current	25 kA
Rated Voltage	415 VAC
Standards and Approvals	CSA 22.2 No. 235, IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
Terminal Type	Screw Clamp
Tightening Torque	2.8 N-m
Trip Curve	C Curve
Weight	0.372 kg
Width	52.5 mm
Wire Stripping Length	14 mm
