Specifications

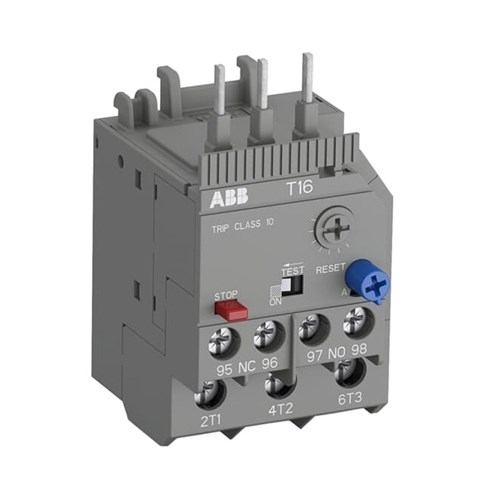

Product Type	Thermal Overload Relays
Brand	ABB
Suitable Product Range	B6 BC6 B7 BC7 VB6 VBC6 VB7 VBC7 MC1 MC2
Max. Operational Voltage	Main Circuit 600 V AC
No. of Change-Over Contacts	1
Rated Impulse Withstand Voltage (Uimp)	6 kV
Rated Insulation Voltage (Ui)	690 VAC
Suitable For	B6, BC6, VB6, BC7, B7, VB7, VBC6, VBC7, MC1, MC2
Suitable for Single Phase / Three Phase	Yes
Thermal Current Setting Range	0.55 ... 0.74 A
Contact Configuration	1NC+1NO
Current Setting Range	0.55-0.74 A
Electrical Connection	Screw
Power Loss	1.1 W
Rated Current	0.55 A
Rated Frequency	50/60 Hz
Rated Voltage	690 VAC
Trip Class	10
Short-Circuit Protective Devices	4 A, Fuse Type gG
Mounting Type	Direct
Depth	53.5 mm
Height	76.7 mm
Weight	0.1 kg
Width	45 mm
Pollution Degree	3
Storage Temperature	-50 to 80 deg C
Operating Temperature	-25 to 60 deg C
IP Rating	IP10, IP20
Standards and Approvals	IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L
