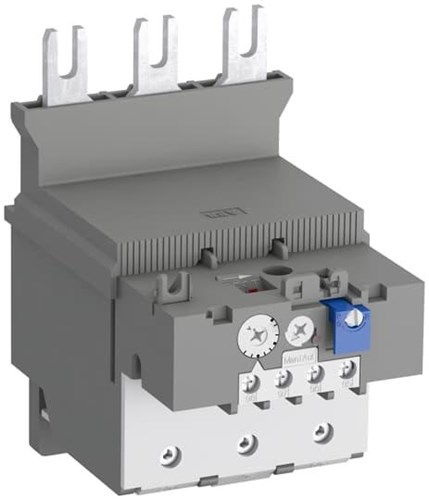

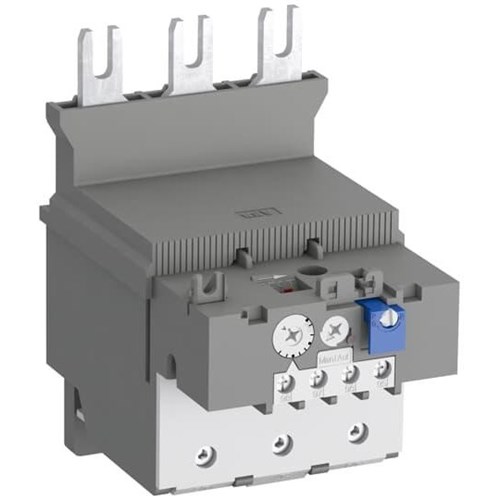

Specifications

Product Type	Thermal Overload Relays
Brand	ABB
Suitable Product Range	AF116 AF140
Max. Operational Voltage	Main Circuit 600 V AC
No. of Change-Over Contacts	1
Rated Impulse Withstand Voltage (Uimp)	8 kV
Rated Insulation Voltage (Ui)	690 V
Suitable For	AF116-AF140 Contactors
Suitable for Single Phase / Three Phase	Yes
Thermal Current Setting Range	100 ... 135 A
Contact Configuration	1NC+1NO
Current Setting Range	100-135 A
Electrical Connection	Screw
Power Loss	2.3 W
Rated Current	0.25 A
Rated Frequency	50/60 Hz
Rated Voltage	690 VAC
Trip Class	10A
Short-Circuit Protective Devices	224 A, Fuse Type gG
Mounting Type	Direct
Depth	126 mm
Height	140 mm
Weight	0.82 kg
Width	89 mm
Pollution Degree	3
Storage Temperature	-40 to 70 deg C
Operating Temperature	-25 to 55 deg C
IP Rating	IP20
Standards and Approvals	IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1
