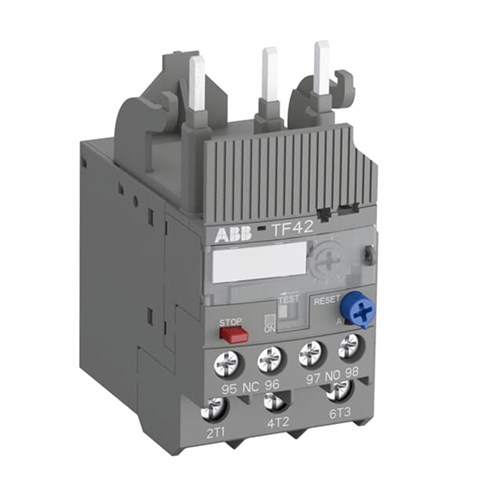

<p>When it comes to safeguarding your electrical systems, choosing the right thermal overload relay is crucial. This specific model offers a robust solution for industrial and commercial applications, ensuring reliable protection against overcurrents that could potentially damage your equipment.</p><p>This thermal overload relay operates efficiently within a rated voltage of 690 VAC and supports a rated current of 0.55 A, making it suitable for various operational environments. It accommodates both 50 Hz and 60 Hz frequencies, providing flexibility in applications across different regions or setups.</p><p>A key feature is its power loss of just 1.1 W, which speaks volumes about its energy efficiency—an important consideration for long-term operational cost management. The device boasts a high rated impulse withstand voltage of 6 kV and an insulation voltage also rated at 690 V, highlighting its capacity to handle demanding electrical conditions safely.</p><p>The contact configuration includes one normally closed (NC) and one normally open (NO) contact, offering versatility in control circuit integration. With a setting range between 0.13-0.17 A, this relay provides precise control over current settings tailored to your specific needs.</p><p>Engineered with Class 10 trip characteristics, this relay ensures quick response times under fault conditions while maintaining system stability during normal operation. Its degree of protection ratings—IP10 and IP20—alongside a pollution degree rating of IP3—indicate its resilience against environmental factors like dust ingress.</p><p>Designed for direct mounting with dimensions measuring 45 mm in width, 88.3 mm in height, and depth at 70.5 mm—the compact size facilitates easy installation even in space-constrained panels or enclosures.</p><p>Operationally versatile within temperatures ranging from -25 to +60 degrees Celsius—and capable of being stored safely between -50 to +80 degrees Celsius—it caters well to diverse climatic conditions encountered across Australia’s vast landscape.</p><p>Compatibility with AF09-AF38 devices further enhances its adaptability within existing setups without necessitating extensive modifications or replacements—a factor worth considering when evaluating lifecycle costs associated with system upgrades or expansions.</p><p>Compliant with international standards such as IEC/EN 60947-1/-4-1/-5-1; UL60947-1/-4-1; IEC60335-2-40 A2L—it assures adherence not only locally but globally recognized safety protocols too!</p><p>For added peace-of-mind regarding short circuit scenarios—it pairs seamlessly alongside protective devices supporting up-to-a-fuse type T rating capped at one ampere maximum capacity respectively!</p><p>Installation simplicity stands out via screw-type electrical connections allowing straightforward secure attachment onto respective wiring assemblies minimizing downtime during commissioning phases alike!</p><p>Incorporating automatic reset functionality means reduced manual intervention post-trip events thereby optimizing uptime potential whilst maintaining continuous protection coverage throughout operations overall!</p>
