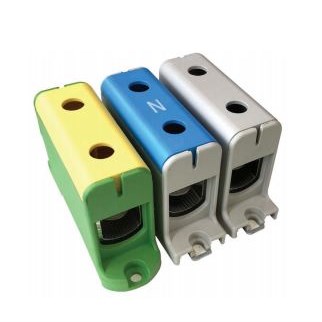

ABB ATB951E ALUMINIUM TERMINAL BLOCK EARTH 2 CONNECTIONS CABLE 95mm²

Product Code: ATB951E

Aluminium terminal block with 2 earth connections. Suitable for copper or aluminium cables with a cable size of 95mm². It has a yellow/green colour and a nominal current of 230A for copper and 180A for aluminium. The nominal insulation voltage is 800V. The tin plating prevents galvanic reactions. It features an internal barrier that allows the connection of both aluminium and copper cables to a single block. The screw head size is 5mm, and it can be mounted on a din rail or panel.

Technical Specifications

Colour Yellow/Green
Brand ABB
Maximum Cable Cross Section (mm²) 95
No. of Connections 2
Nominal Current (A) 230 (Cu)/180 (AL)
Nominal Insulation Voltage (V) 800
Tightening Torque (Nm) 20
Screw Head Size (mm) 5
