Product Code: E16DU-2.7

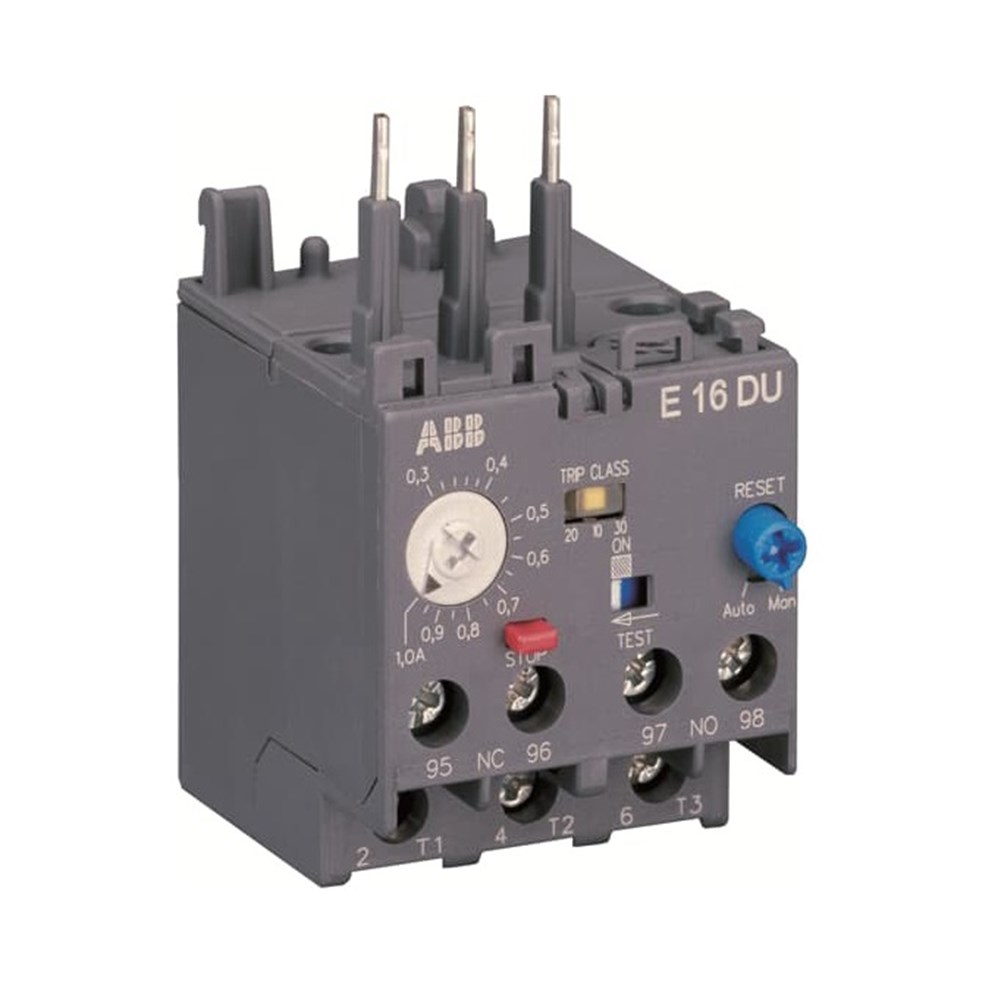

The E16DU-2.7 is an self-supplied electronic overload relay, which means no extra external supply is needed. It offers reliable and fast protection for motors in the event of overload or phase failure. Easy to use like a thermal overload relay and compatible with standard motor applications, the electronic overload relay is convincing, above all, due to its wide setting range, high accuracy, high operational temperature range and the possibility to select a trip class (10E, 20E, 30E). Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. The overload relays are connected directly to the contactors. Single mounting kits are available as accessory.

Suitable For	B6, B7, BC6, BC7, VB6, VB7, VBC6, VBC7, MC1, MC2
Brand	ABB
Mounting Type	Direct Attachment
Auxiliary Contacts	1NO/1NC
Current Setting Range (A)	0.8
Main Circuit Electrical Connection	Screw Connection
No. of Normally-closed Auxiliary Contacts	1
No. of Normally-open Auxiliary Contacts	1
No. of Poles	3
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	690
Rated Operational Voltage AC (V)	690
Release Class	Adjustable
Reset Function	Automatic
Short-Circuit Protective Device	10A, fuse type gG
Thermal Current Setting Range (A)	0.8 - 2.7
Dimensions (mm)	44.4W x 74.6H x 57D
Trip Class	10E, 20E, 30E
Degree of Protection	IP20
Pollution Degree	3
