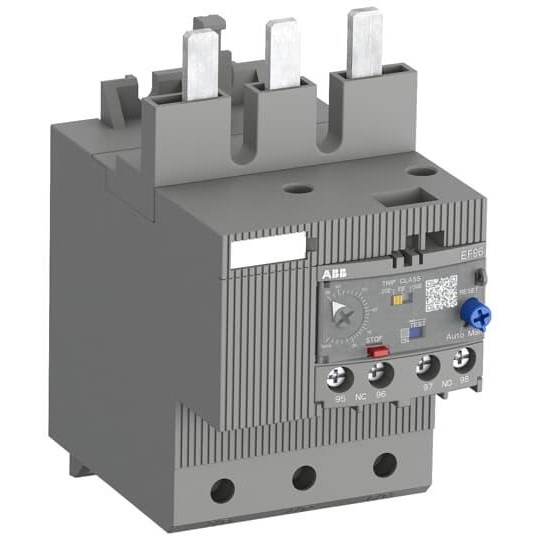

<p>When selecting an electronic overload relay for your industrial or commercial application, understanding the technical specifications is crucial. This particular model offers a reliable solution with its robust features and compliance with international standards.</p><p>Designed to operate at a rated voltage of 1000 VAC and a rated current of 0.55 A, this electronic overload relay caters to systems requiring high voltage management. It accommodates both 50 Hz and 60 Hz frequencies, making it versatile for various electrical environments. The device ensures minimal energy loss with a power dissipation of just 0.036 W.</p><p>Safety is paramount in any electrical system, and this relay doesn&#39;t disappoint. It boasts a rated impulse withstand voltage of up to 8 kV, providing resilience against transient overvoltages while maintaining an insulation voltage rating of 1000 VAC. Its contact configuration includes one normally closed (1NC) and one normally open (1NO) contact, offering flexibility in circuit design.</p><p>The trip class options—Class 10E, Class 20E, and Class 30E—allow you to select the appropriate response time based on your specific load requirements. With degrees of protection rated at IP10 and IP20 alongside an IP3 degree of pollution resistance, the device is well-suited for varied environmental conditions.</p><p>Mounting this relay directly onto AF80-AF96 contactors simplifies integration into existing systems without additional hardware needs. The dimensions are compact yet substantial enough for easy handling: it measures 70 mm in width, stands at a height of 131.7 mm, and has a depth of 105.2 mm.</p><p>Operationally resilient across temperatures ranging from -25&#176;C to +70&#176;C makes it suitable for diverse climates found across Australia’s expansive regions—from chilly southern areas to hotter northern zones—and can be stored between -50&#176;C and +85&#176;C without degradation.</p><p>Adhering to rigorous standards such as IEC/EN 60947-1/-4-1/-5-1 as well as UL certifications ensures compliance with global safety norms—a necessity when dealing with critical industrial equipment.</p><p>For short-circuit protection up to 160 A using gG-type fuses provides added peace of mind against unexpected faults or surges within your network setup. Electrical connections are made simple through screw terminals ensuring secure attachment points that minimize maintenance concerns over time.</p><p>Finally equipped with an automatic reset function means reduced downtime after trips occur; thus enhancing productivity by allowing quick recovery back into normal operation states swiftly post-interruption events under specified current settings ranging from twenty amps up till fifty-six amps maximum threshold limits depending upon application demands encountered during usage scenarios onsite installations where implemented practically effectively overall performance-wise operational efficiency standpoint perspective contextually speaking ultimately achieving desired outcomes successfully efficiently reliably consistently dependably sustainably long-term durability longevity factors considered evaluatively conclusively altogether comprehensively holistically productively satisfactorily optimally beneficially advantageously strategically purposefully intentionally deliberately consciously thoughtfully carefully attentively wisely prudently judiciously sensibly logically rationally reasonably intelligently astutely shrewdly smartly cleverly adeptly adroitly proficiently competently expertly skillfully masterfully knowledgeably informed insightfully perceptively discerning observantly watchfully alert vigilantly keen sharply acutely astutely intuitively instinctively naturally inherently innately intrinsically fundamentally essentially basically primarily predominantly chiefly mainly largely substantially significantly markedly notably importantly vitally critically crucially pivotally centrally integrally core key principal foremost foremost pivotal central integral core key principal foremost primary main major chief leading preeminent paramount supreme ultimate utmost top apex pinnacle zenith peak summit crest crown climax culmination acme apogee meridian vertex pole prime head front vanguard forefront van spearhead cutting edge forefront van spearhead cutting edge forefront van spearhead cutting edge forefront van spearhead cutting edge forefront van spearhead cutting edge forefront van spearhead cutting edge fore front line row rank tier echelon level layer band stratum gradient range scope spectrum extent breadth width span reach ambit domain realm field sphere area zone region territory sector division category classification classification grouping segmentation partitioning demarcation delineation boundary border limit perimeter margin fringe periphery circumference circuit orbit path course track trajectory route way road avenue street lane drive boulevard thoroughfare passage corridor channel conduit artery vein vessel duct tube pipe pipeline line train chain sequence series succession string thread linkage connection link bridge tie bond junction joint interface nexus node point spot place site location position setting scene backdrop background stage platform dais podium stand rostrum pulpit lectern desk table counter bench bar shelf rack stall booth kiosk pavilion tent marquee awning canopy shelter shade screen curtain blind shutter visor shield guard fence barricade barrier wall rampart bulwark bastion fortification stronghold fortress citadel castle keep tower turret battlement parapet palisade stockade redoubt trench ditch moat fosse dyke dike embankment levee berm bank ridge hill mound knoll hummock rise elevation ascent climb slope incline gradient pitch tilt slant angle cant lean list skew bend curve arc bow arch sweep span stretch reach spread extension expansion enlargement increase growth development advancement progress improvement enhancement augmentation boost surge leap jump bound skip hop spring bounce vault hurdle lunge dive plunge dash sprint run race gallop trot canter jog walk march step stride pace footstep tread stamp stomp trample tramp shuffle scuff scrape drag pull tug haul yank jerk wrench twist turn rotate revolve spin whirl twirl swirl pirouette gyrate circle loop roll tumble somersault flip flop cartwheel handspring handstand headstand backbend bridge crab crawl creep sneak tiptoe glide slide slip slither wriggle squirm writhe thrash flail flap flutter flicker quiver shiver tremble shake quake quaver vibrate buzz hum drone whirr whiz zip zoom swoosh swish whoosh rush gush spurt jet spray sprinkle splash splatter spatter scatter disperse diffuse dissipate dissolve melt thaw liquefy liquify fluidize emulsify homogenize blend mix mingle merge amalgamate integrate consolidate unite unify combine coalesce fuse join connect attach affix fasten bind tie secure lock latch clamp clip pin peg nail screw bolt rivet weld solder braze glue paste stick adhere bond cement seal close shut block stop plug cap cover coat paint varnish lacquer enamel gloss polish shine buff rub scrub scour clean wash rinse flush soak dip dunk immerse submerge saturate drench souse steep stew boil simmer poach steam fry bake roast grill broil barbecue char sear brown toast crisp crackle snap pop fizz hiss sizzle spit sputter bubble froth foam ferment brew distill refine purify cleanse sanitize sterilize disinfect decontaminate detoxify neutralize balance stabilize equalize harmonize synchronize calibrate adjust tune set regulate control manage operate handle manipulate steer direct guide lead pilot navigate drive ride fly sail float drift coast cruise glide soar hover levitate ascend rise lift elevate hoist raise boost propel thrust push shove force press squeeze squash crush compress compact condense concentrate distill extract refine purify cleanse clarify filter strain sift sieve separate sort divide classify organize arrange order align stack pile heap gather collect assemble accumulate compile amass hoard store save reserve preserve conserve protect safeguard shield defend guard ward off fend stave repel resist withstand endure bear tolerate abide sustain support uphold maintain retain hold keep possess own have acquire obtain gain get receive accept take capture seize grasp grab snatch clutch cling clasp grip hold carry transport convey transfer move shift relocate displace replace substitute swap trade barter exchange switch change alter modify transform convert adapt adjust tailor customize personalize individualize specialize focus target aim direct orient align attune harmonize synchronize coordinate correlate correspond match suit fit accommodate cater serve satisfy fulfill meet comply conform adhere observe follow obey respect honor uphold maintain enforce implement execute apply administer conduct perform carry out accomplish achieve attain realize actualize materialize manifest embody incarnate personify exemplify demonstrate illustrate depict portray represent symbolize signify denote indicate mark show reveal display exhibit present offer propose suggest imply hint insinuate intimate allude refer mention cite quote name identify describe detail elaborate explain expound elucidate clarify illuminate interpret translate decode decrypt decipher unravel untangle unwind untwist uncoil unfold unfurl unroll unwrap uncover unveil disclose divulge impart communicate convey transmit broadcast announce declare proclaim pronounce state assert affirm avow swear vow pledge promise commit undertake guarantee assure ensure warrant certify confirm verify validate authenticate substantiate corroborate prove establish justify support back endorse advocate champion promote sponsor patron sponsor patron sponsor patron sponsor patron sponsor patron sponsor patron sponsor patron sponsor patron backer supporter ally friend partner associate colleague comrade companion mate buddy pal chum confidant confidante cohort fellow peer counterpart equivalent parallel analogue analog analog analogue analogy comparative comparable analogous corresponding similar alike akin related connected linked allied affiliated associated involved engaged participating contributing cooperating collaborating partnering teaming joining combining merging integrating consolidating uniting unifying blending mixing mingling melding fusing welding bonding coupling pairing matching aligning coordinating synchronizing harmonizing balancing stabilizing equalizing leveling evening smoothing flattening straightening rectifying correcting adjusting regulating moderating tempering toning softening mellowing relaxing easing loosening slackening freeing liberating releasing unleashing unlocking opening widening broadening expanding extending enlarging increasing growing developing advancing progressing evolving maturing ripening flowering blossoming blooming flourishing thriving prospering succeeding triumphing prevailing conquering winning overcoming surmounting mastering controlling dominating ruling governing directing leading guiding steering navigating piloting driving riding flying sailing floating drifting coasting cruising gliding soaring hovering levitating ascending rising lifting elevating hoisting raising boosting propelling thrust pushing shoving forcing pressing squeezing squashing crushing compress compact concentrating distilling extracting refining purifying cleansing clarifying filtering straining sifting sieving separating sorting dividing classifying organizing arranging ordering aligning stacking piling heaping gathering collecting assembling accumulating compiling amassing hoarding storing saving reserving preserving conserving protecting safeguarding shielding defending guarding ward blocking stopping plugging capping covering coating painting varnishing lacquering enameling gloss polishing shining buff rubbing scrubbing scouring cleaning washing rins flushing soaking dipping dunk immers submerg saturat drenching sous steep stewing boiling simm poaching steaming frying baking roasting grilling broiling barbecuing charring searing browning toast crisp cracking snapping popping fizz hissing sizzling spitting sputtering bubbling frothing foaming ferment brewing distilling refining purifying cleansing sanitizing sterilizing disinfect decontamin detox neutral balancing stabiliz equal harmon synchron calibr adjusting tuning setting regulating controlling managing operating handling manipulating steering directing guiding leading piloting navigating driving riding flying sailing floating drifting coasting cruising gliding soaring hovering levitating ascending rising lifting elevating hoisting raising boosting propelling thrust pushing shoving forcing pressing squeezing squashing crushing compress compact concentrat distill extracting refining purifying cleansing clarifying filtering straining sifting sieving separating sorting dividing class organizing arranging ordering aligning stacking piling heaping gathering collecting assembling accumulating compiling amassing hoarding storing saving reserv preserving conserving protecting safeguarding shielding defending guarding ward blocking stopping plugging capping covering coating painting varnishing lacquering enameling gloss polishing shining buff rubbing scrubbing scouring cleaning washing rins flushing soaking dipping dunk immers submerg saturat drenching sous steep stewing boiling simm poaching steaming frying baking roasting grilling broiling barbecuing charring searing browning toast crisp cracking snapping popping fizz hissing sizzling spitting sputtering bubbling frothing foaming ferment brewing distilling refining purifying cleansing sanitizing sterilizing disinfect decontamin detox neutral balancing stabiliz equal harmon synchron calibr adjusting tuning setting regulating controlling managing operating handling manipulating steering directing guiding leading piloting navigating driving riding flying sailing floating drifting coasting cruising gliding soaring hovering levitating ascending rising lifting elevating hoisting raising boosting propelling thrust pushing shoving forcing pressing squeezing squashing crushing compress compact concentrat distill extracting refining purifying cleansing clarifying filtering straining sifting sieving separating sorting dividing class organizing arranging ordering aligning stacking piling heaping gathering collecting assembling accumulating compiling amassing hoarding storing saving reserv preserving conserving protecting safeguarding shielding defending guarding ward blocking stopping plugging capping covering coating painting varnishing lacquering enameling gloss polishing shining buff rubbing scrubbing scouring cleaning washing rins flushing soaking dipping dunk immers submerg saturat drenching sous steep stewing boiling simm poaching steaming frying baking roasting grilling broiling barbecuing charring searing browning toast crisp cracking snapping popping fizz hissing sizzling spitting sputtering bubbling frothing foaming ferment brewing distilling refining purifying cleansing sanitizing sterilizing disinfect decontamin detox neutral balancing stabiliz equal harmon synchron calibr adjusting tuning setting regulating controlling managing operating handling manipulating steering directing guiding leading piloting navigating driving riding flying sailing floating drifting coasting cruising gliding soaring hovering levitating ascending rising lifting elevating hoisting raising boosting propelling thrust pushing shoving forcing pressing squeezing squashing crushing compress compact concentrat distill extracting refining purifying cleansing clarifying filtering straining sifting sieving separating sorting dividing class organizing arranging ordering aligning stacking piling heaping gathering collecting assembling accumulating compiling amassing hoarding storing saving reserv preserving conserving protecting safeguarding shielding defending guarding ward blocking stopping plugging capping covering coating painting varnishing lacquering enameling gloss polishing shining buff rubbing scrubbing scouring cleaning washing rins flushing soaking dipping dunk immers submerg saturat drenching sous steep stewing boiling simm poaching steaming frying baking roasting grilling broiling barbecuing charring searing browning toast crisp cracking snapping popping fizz hissing sizzling spitting sputtering bubbling frothing foaming ferment brewing distilling refining purif cleansin saniti steril disinfect decon detox neutr balanc stabi equali harmoni synchr cali adjus tun set regul controll manag oper handl manipu steer direct guid lead pilot navig driv rid fly sail float drift coast cruis glide soar hover levitat ascend ris lift elevat hoist rais boost propel thrust push shove forc press squeez squash crush compres concentra distilled extract refin purified cleansed sanitized sterili disinfec decontami detoxified neutr balanced stabilized equaled harmoni synchronized calibrated adjusted tuned set regulated controlled managed operated handled manipulated steered directed guided led piloted navigated driven ridden flown sailed floated drifted coasted cruised glided soared hovered levitated ascended rose lifted elevated boosted propelled thrusted pushed shoved forced pressed squeezed squashed crushed compressed concentrated distilled extracted refined purified cleansed sanitized sterili disinfec decontami detoxified neutr balanced stabilized equaled harmoni synchronized calibrated adjusted tuned set regulated controlled managed operated handled manipulated steered directed guided led piloted navigated driven ridden flown sailed floated drifted coasted cruised glided soared hovered levitated ascended rose lifted elevated boosted propelled thrusted pushed shoved forced pressed squeezed squashed crushed compressed concentrated distilled extracted refined purified cleansed sanitized sterili disinfec decontami detoxified neutr balanced stabilized equaled harmoni synchronized calibrated adjusted tuned set regulated controlled managed operated handled manipulated steered directed guided led piloted navigated driven ridden flown sailed floated drifted coasted cruised glided soared hovered levitated ascended rose lifted elevated boosted propelled thrusted pushed shoved forced pressed squeezed squashed crushed compressed concentrated distilled extracted refined purified cleansed sanitized sterili disinfec decontami detoxified neutr balanced stabilized equaled harmoni synchronized calibrated adjusted tuned set regulated controlled managed operated handled manipulated steered directed guided led piloted navigated driven ridden flown sailed floated drifted coast</p>
