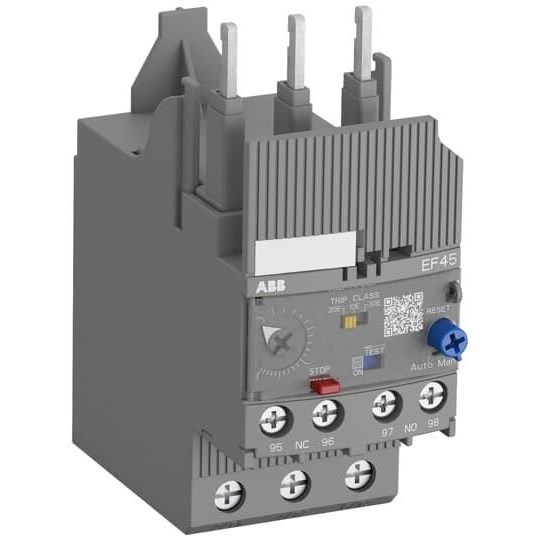

<p>The Electronic Overload Relay is an essential component for safeguarding electrical circuits, specifically designed to offer reliable protection in industrial and commercial settings. With a rated voltage of 690 VAC and a current setting range from 9 to 30 A, this relay is versatile enough to handle various operational demands while ensuring system safety.</p><p>Operating efficiently at both 50 and 60 Hz frequencies, the relay features a power loss of just 0.021 W, making it an energy-efficient choice for your electrical systems. The device&#39;s robust design includes a rated impulse withstand voltage of 6 kV and a rated insulation voltage matching its operating capacity at 690 VAC, providing enhanced durability against electrical surges.</p><p>The contact configuration comprises one normally closed (1NC) and one normally open (1NO) contact, offering flexibility in circuit control applications. The trip class options—Class 10E, Class 20E, and Class 30E—allow customization based on specific overload conditions you may encounter.</p><p>In terms of environmental resilience, the relay boasts an IP20 degree of protection alongside an IP3 degree of pollution resistance. This ensures reliable operation within harsh environments without compromising performance or safety standards.</p><p>Designed for direct mounting with dimensions measuring at a width of 45 mm, height of 104.7 mm, and depth of 86 mm, the relay seamlessly integrates into existing setups without demanding excessive space. Its operational temperature range spans from -25&#176;C to +70&#176;C with storage capabilities extending from -50&#176;C to +80&#176;C—demonstrating substantial adaptability across varied climatic conditions.</p><p>This electronic overload relay pairs effectively with AF26-AF38 contactors for streamlined installation processes. It meets rigorous international standards including IEC/EN and UL certifications such as IEC/EN 60947-1/-4-1/-5-1 and UL60947-1/-4-1 ensuring compliance with global safety regulations.</p><p>For short circuit protection up to a maximum rating of 160 A using gG type fuses provides additional security against unexpected faults in your system infrastructure. The screw-type electrical connection facilitates secure wiring connections enhancing overall reliability during operations while the automatic reset function simplifies maintenance by reducing manual intervention after fault clearance.</p><p>Overall this Electronic Overload Relay stands out as a dependable solution tailored towards maintaining uninterrupted service in complex electrical networks typical within Australia’s industrial landscape thanks largely due its comprehensive feature set aligned closely around user-centric needs MPN: [Manufacturer Part Number].</p>
