Industrial facilities operating in explosive atmospheres (Zone 0/1/2) face a critical communications dilemma. The need for intrinsically safe equipment often forces operations to choose between network performance and safety compliance. Legacy fieldbus systems, while meeting hazardous area requirements, struggle with bandwidth limitations that hinder real-time data exchange. Meanwhile, conventional Ethernet solutions cannot be safely implemented in these high-risk environments. This technological gap creates measurable operational challenges—delayed process adjustments, cumbersome diagnostics, and barriers to digital transformation.

STAHL's Ethernet APL (Advanced Physical Layer) solutions address this challenge by delivering high-speed data transmission while maintaining rigorous intrinsic safety standards. As an advanced two-wire Ethernet technology specifically designed for hazardous locations, Ethernet APL represents a significant leap forward for process automation in oil and gas, chemical, and pharmaceutical industries.

The Limitations of Traditional Hazardous Area Networks

Traditional communication systems in Zone-rated environments have long been constrained by fundamental technical compromises. Fieldbus technologies, while explosion-proof, operate at speeds insufficient for modern data requirements. The separate cabling for power and data not only increases installation complexity but also drives up maintenance costs. These limitations become particularly problematic as industries adopt Industry 4.0 technologies that demand real-time data exchange.

The consequences manifest in several operational challenges. Process engineers face latency issues when attempting to implement advanced control strategies. Maintenance teams struggle with time-consuming diagnostics due to limited network visibility. Most critically, the inability to integrate modern analytics tools prevents facilities from unlocking potential efficiency gains.

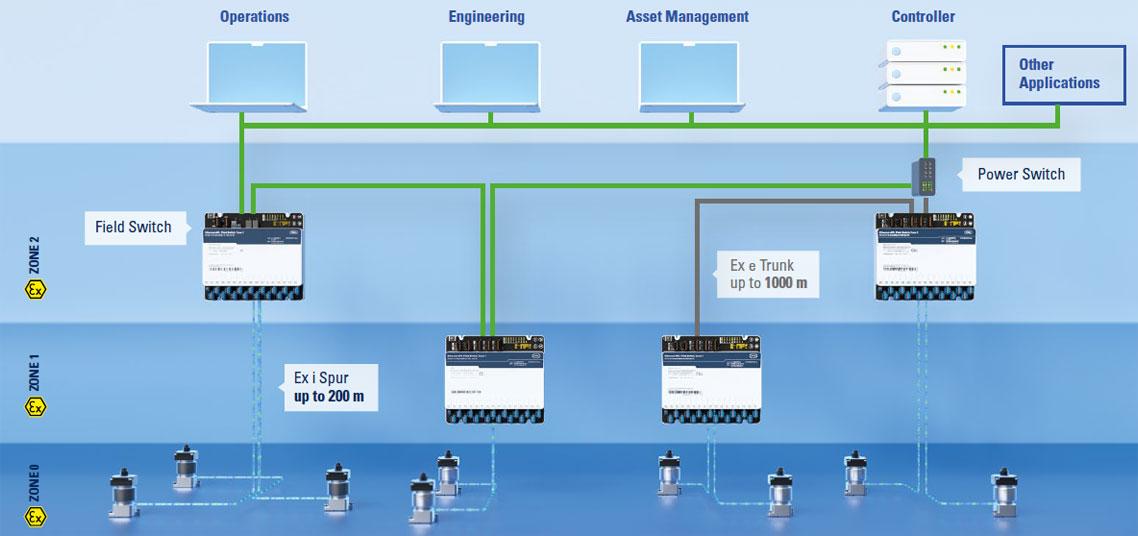

Ethernet APL: A Technical Breakthrough for Hazardous Areas

Ethernet APL technology resolves these challenges through several key innovations. The two-wire implementation combines power and data transmission, significantly reducing cabling complexity while maintaining intrinsic safety. With bandwidth capabilities of 10 Mbit/s—orders of magnitude faster than traditional fieldbus systems—it enables true real-time communication in Zone-rated environments.

The technology's physical layer specifications are specifically designed for hazardous area requirements. By incorporating advanced power limitation features, Ethernet APL devices meet ATEX, IECEx, and other global explosion protection standards. This allows for seamless integration of Ethernet connectivity in areas where conventional networking solutions would pose safety risks.

STAHL's Implementation of Ethernet APL Technology

STAHL has developed a comprehensive portfolio of Ethernet APL solutions tailored for industrial hazardous areas. The product range includes intrinsically safe switches, power hubs, and field distributors—all certified for use in Zone 1/21 environments. These devices incorporate ruggedised designs capable of withstanding the harsh conditions typical of process industry installations.

The H1SE-4TX-1FX Ethernet APL IS Switch exemplifies this approach, offering four APL ports with fibre optic uplink capability in a compact, explosion-proof enclosure. Such implementations demonstrate how modern networking capabilities can be safely brought into classified locations without compromising performance or reliability.

Applications Transforming Industrial Operations

In practical terms, Ethernet APL enables several critical advancements for hazardous area operations. Real-time process monitoring becomes feasible even in Zone 1 environments, allowing for more precise control strategies. Predictive maintenance systems gain access to high-frequency sensor data previously unavailable through traditional fieldbus networks.

The technology also facilitates the integration of advanced analytics platforms, enabling facilities to transition from reactive to proactive operational strategies. Perhaps most significantly, it provides a migration path for older installations to modernise their automation infrastructure without requiring complete system overhauls.

Considerations for Implementation

While Ethernet APL offers significant advantages, its adoption requires careful planning. Network architecture must account for the specific characteristics of two-wire Ethernet implementations. Infrastructure upgrades should be phased to minimise operational disruption, with particular attention given to the integration with existing control systems.

Certification requirements remain paramount—all installed components must maintain compliance with applicable hazardous area standards. Proper installation practices, including cable selection and grounding, are critical to achieving optimal network performance in these demanding environments.

For facilities considering network upgrades in Zone-rated areas, Ethernet APL warrants serious evaluation. Its ability to resolve longstanding communication limitations while meeting explosion protection requirements makes it a compelling solution for modern industrial operations.

For more information on Ethernet APL solutions for hazardous areas, contact IPD today.
