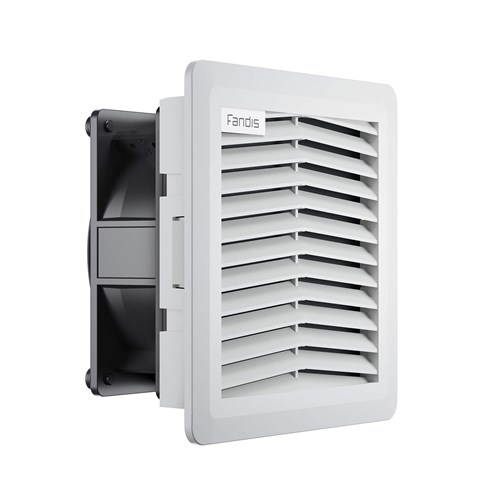

Fandis FPF12KU230BER110 Fan Filter 57cu-m/h 61cu-m/h 230VAC 24 to 250VDC IP54 150W 150H Synthetic Fiber

Product Code: FPF12KU230BER110

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Fan Filter
Brand FANDIS
Air Flow 57 cu-m/h, 61 cu-m/h
Colour Light Grey RAL 7035
Degree of Protection IP54
Depth 64 mm
Height 150 mm
Housing Material ABS/PC Alloy
Material Synthetic Fiber
Noise Level 46 dBA, 49 dBA
Operational Temperature -10 to 50 deg C
Rated Current 0.125 A, 0.11 A
Rated Frequency 50/60 Hz
Rated Power 20 W, 19 W
Rated Voltage 230 VAC, 24-250 VDC
Standards and Approvals CE, cURus, UKCA
Width 150 mm
Wire Cross Section 18-12 AWG

Documents

IPD Product Catalogue V17
FANDIS Datasheet
Instructions

Certificate

Certificate of Compliance
EU Declaration of Conformity
