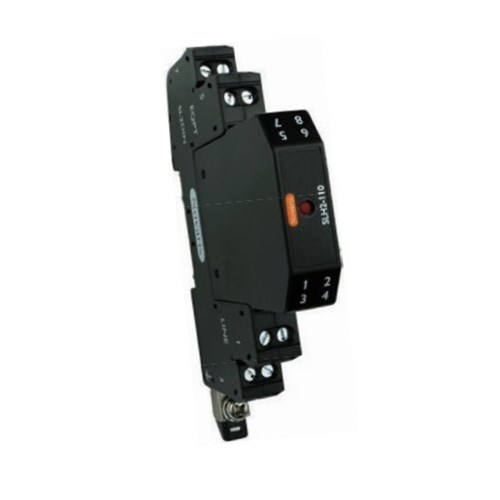

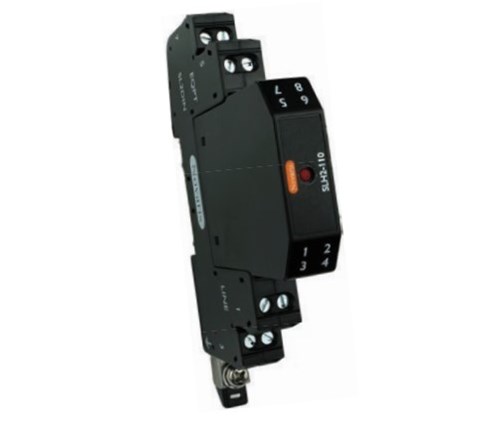

Novaris SLH2-36-G Surge Protection 10kA 20kA 36VDC Screw Cage TS35 IP20

Product Code: SLH2-36-G

1

Specifications

Product Type	Surge Protection
Brand	NOVARIS
Series	SLH2
Base Type	G Rail Clip
Capacitance	2 nF
Connection Type	Screw Cage
Degree of Protection	IP20
Depth	110 mm
Height	71 mm
Humidity	5-95%
Material	Polycarbonate
Modes of Protection	Transverse and Common Modes
Mounting Type	TS35 DIN Rail
Number of Lines	1 pair
Operational Temperature	-40 to 70 deg C
Rated Current	10 kA (Per Line), 20 kA (Common Mode)
Rated Voltage	36 VDC
Resistance	0.06 Ohm
Response Time	<5 ns
Standards and Approvals	IEC 61643-21, AS1768, UL497, A, B, AS/NZS4117
Tightening Torque	0.5 N-m
Voltage Protection Level	70 V
Weight	55 g
Width	12 mm

Documents

IPD Product Catalogue V17
