Specifications

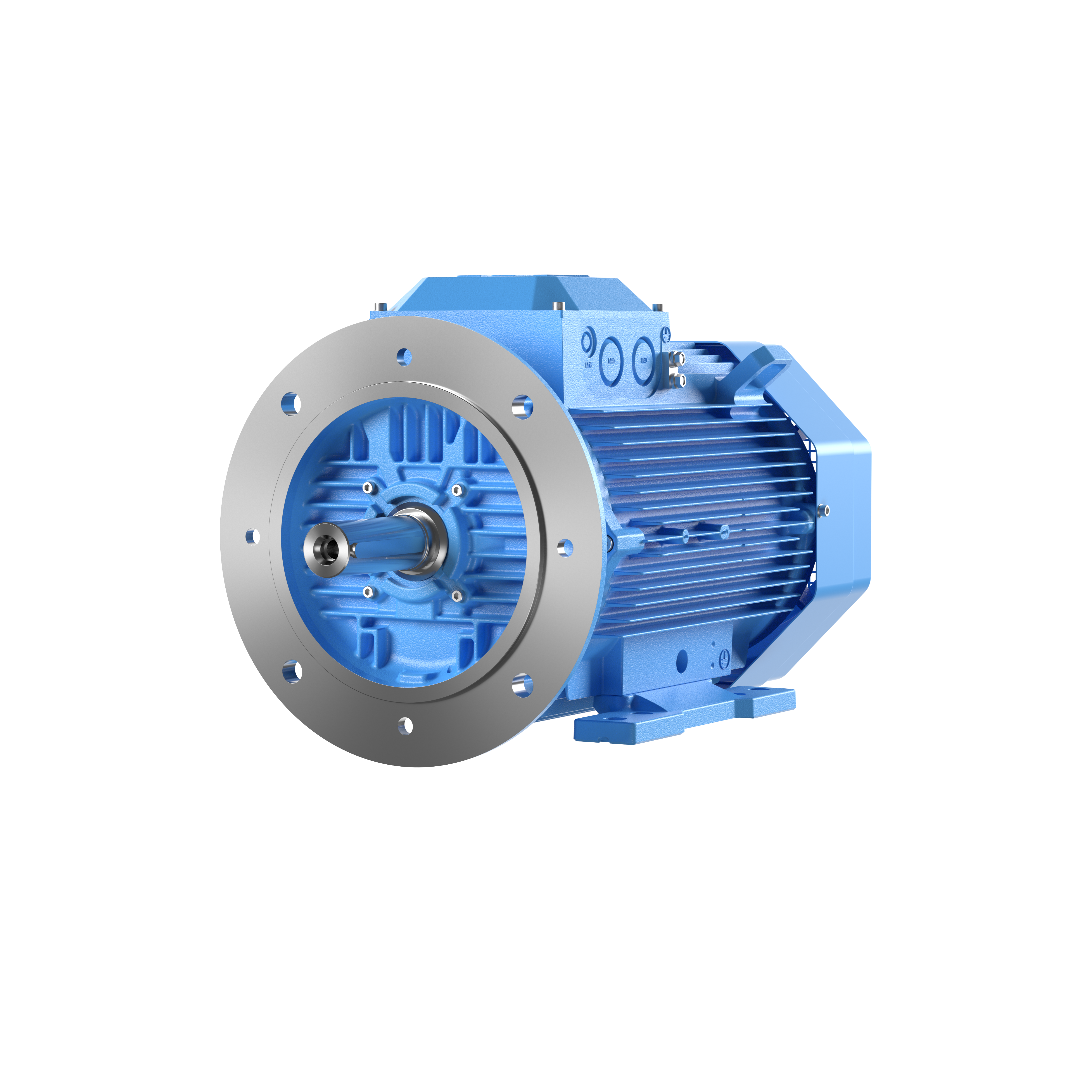

Product Type	3-Phase squirrel cage motor
Brand	ABB
Connection Type	DELTA - 415 V in D & 690 V in Y
Insulation Class	ICLF
Output Ratings	18.5 kW
Efficiency	IE3
Rated Frequency	50/60 Hz
Colour	Blue
Frame Material	Aluminium
Frame Size	160
Motor Poles/Speed	2P / 3000 RPM
Mounting	Foot/flange-mounted, term. box top, IM B35, IM 2001
Type of Duty	S1
Depth	681 mm
Height	370 mm
Weight	137 kg
Width	310 mm
IP Rating	IP55
Standards and Approvals	IEC 60034-30-1
