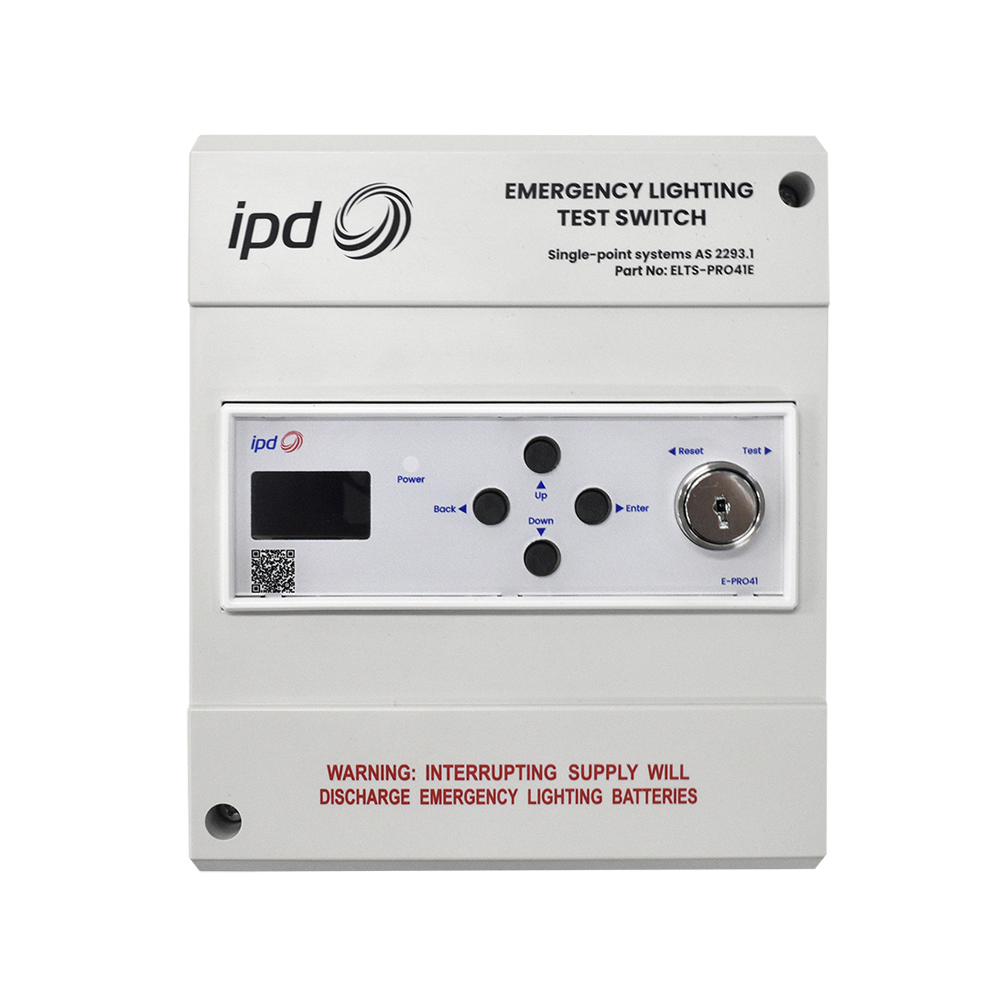

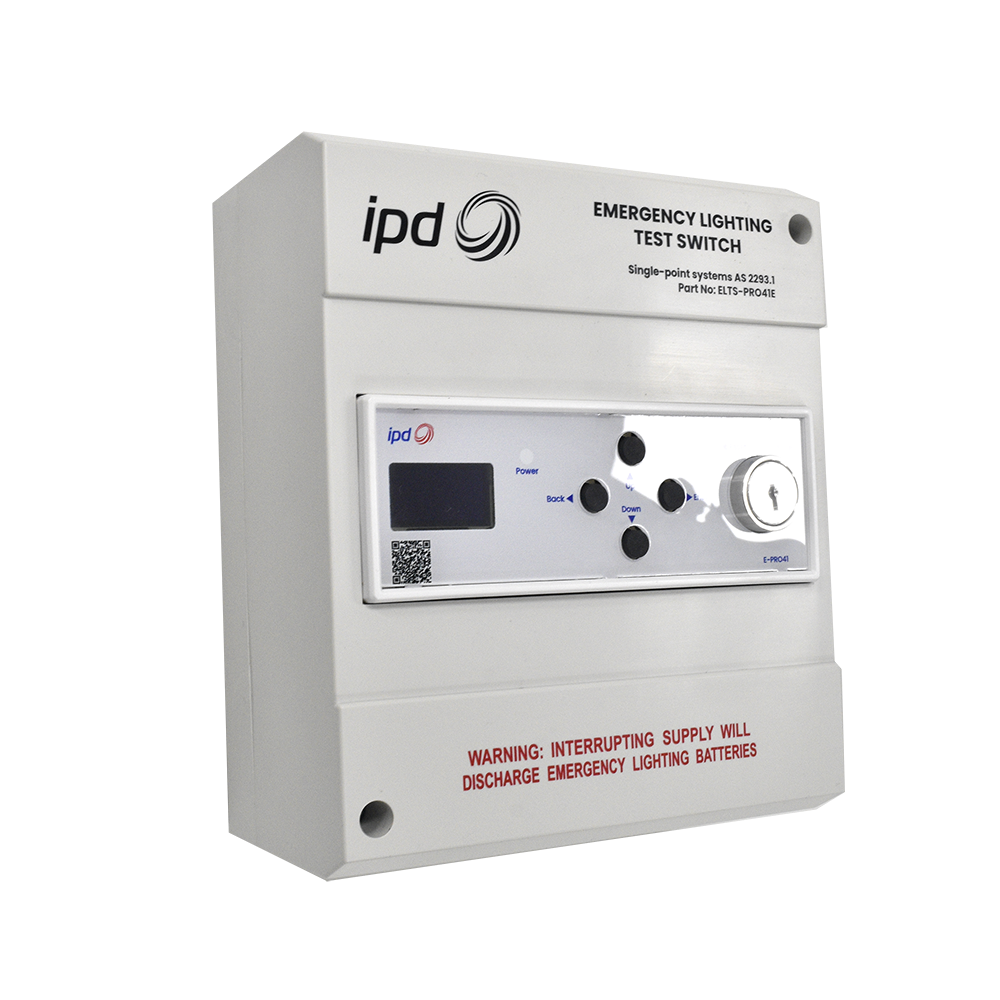

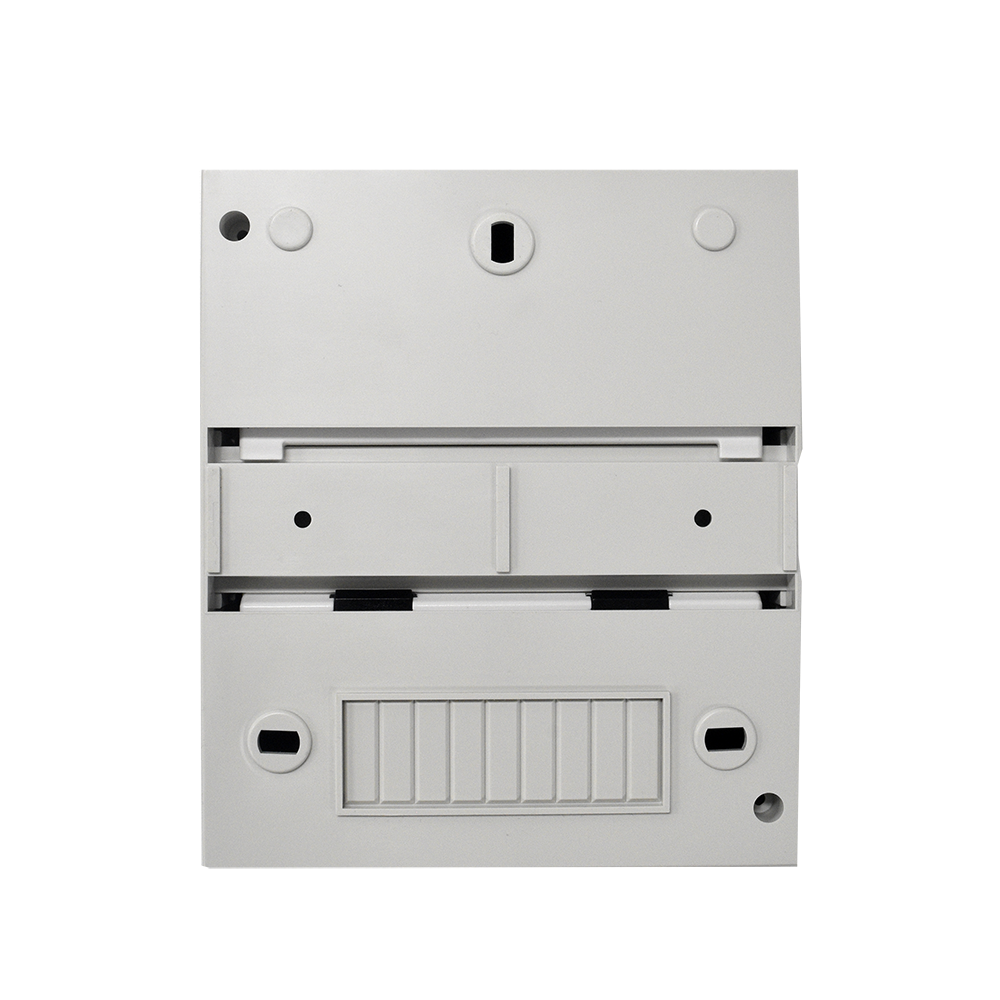

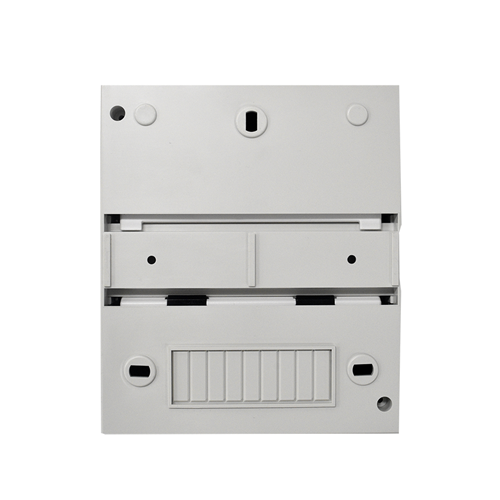

Product Code: ELTS-PRO41E

Designed for periodic testing of Emergency lighting circuits.
Conforms to AS/NZS 2293.1:2018 Emergency lighting and exit signs for buildings.
Conforms to IEC 61812-1:2022 Time relays and coupling relays for industrial and residential use.
60, 90, 120 mins Preset and Discrete programmable timer.
4 single phase 20A circuits.

Specifications

Product Type	Emergency Lighting Test Switch
Brand	IPD
Ambient Temperature	0 to 40 deg C
Contact Material	Copper Tin Plated
Degree of Pollution	2
Degree of Protection	IP20
Dimensions	140Wx 165HX80D mm
Display Type	0.96 in OLED Display (128 x 64 px)
Electrical Durability	1000 Cycles
Frame Size	DIN1
Key Removal/Retained Positions	2-Position Spring-Return-Centre
Mounting Type	35 mm DIN Rail
Number of Circuits	4
Rated Current	20 A
Rated Frequency	50 Hz
Rated Power	10 W
Rated Voltage	100-240 VAC
Relative Humidity	0.6
Relay Type	External Non-Latching
Storage Temperature	0 to 40 deg C
Tightening Torque	Control Supply Terminals: 0.6Nm Output Circuit Terminals: 1.2Nm
Timer Function	1-99999 sec Discrete/60, 90 and 120 min Pre-Set
Upstream Protection	Circuit Breaker: Current Limiting Breaker 20A, ABBS201C20 (or equivalent); Fuse: 20A aM Fuse
Wiring Type	Solid or Stranded, Single Wire; Power Supply: 1.5mm² to 2.5mm²; Emergency Lighting: 4mm² to 10mm²
Mechanical Endurance	10,000 Operations

Description

<p>The Enclosed Emergency Lighting Test Switch, ELTS-PRO41E, is intended for testing single phase circuits for emergency lighting according to AS/NZS 2293.1:2018. The ELTS-PRO41E houses the E-PRO41 which contains normally closed contacts, allowing the full supply to emergency lighting circuits up to 20A per circuit. On a periodical basis and in accordance with the norm, the ELTS-PRO41E enables the operator, through a key selector switch, to operate the test switch and cut off the power for a duration either preset (60, 90 or 120mins) or other discrete times programmable through the front buttons. An OLED display allow count down as well as advance sequential programming. Statistics of operation are also available within the unit. The ELTS-PRO41E allows the command of an external contactor through a dry output contact up to 5A 24 VDC or 240 VAC.</p>
