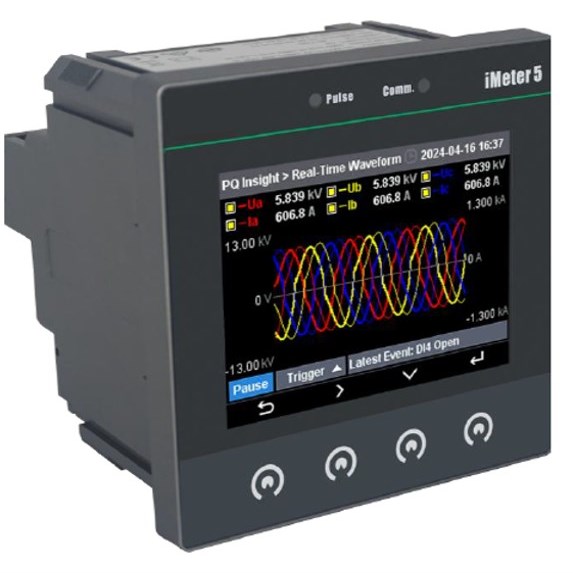

IMETER5-A5925AAE iMeter5 Advanced Power Quality Analyzer Advanced Model (PQI-A): Standard Model with 4GB Memory + Mains Signaling Voltage

Product Code: IMETER5-A5925AAE

  • IEC 62053-22 Class 0.2S kWh metering with Multi-Tariff TOU True RMS @ 512 samples/cycle sampling 512MB (Classic Model), 2GB (Class S Model) or 4GB (Class A Model) on-board log memory Industrial-grade, 3.5 High-Resolution Color IPS LCD @ 320x240 Device Operating Time (Running Hours) Time Sync. via NTP, IRIG-B, or GPS 1PPS output 32 Programmable Setpoints Dual 10Base-T/100Base-TX Daisy Chain Ethernet and 1xRS-485 ports as well as 1xRJ45 port for modular I/O expansion Optional IEC 61000-4-30 Ed. 3.1 Class S / Class A certified EN 50160-2022 and IEEE Std 519-2022 Reporting Dips, Swells, Interruptions, Transients, Rapid Voltage Change, Inrush Current, Mains Signalling Voltage and Flickers monitoring Real-time Waveform Capture (WFC), Waveform Recording (WFR) & Disturbance Waveform Recording (DWR) in COMTRADE File format Disturbance Direction Indicator for Dips, Swells and Interruptions Statistical Data Recording and ½ cycle RMS Recording
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type ADVANCED PQ METER
Brand iMETER
Accuracy ±0.1%
Communication 2x10/100BaseT Ethernet Port +1xRS-485 port
Dimensions 96x96x85 mm
I/O Type 4xDI + 2xDO (Form A Mechanical Relay)
IP Rating IP54
Rated Current 5A Standard (In), 1A Optional (In)
Rated Frequency 40Hz-72Hz
Rated Voltage 4-800V L-N / 7-1380V
Operational Temperature Range -25°C to 70°C
Power Quality Measurements -Voltage Characteristics of Electricity supplied by Public Distribution Systems. -General Guide on Harmonic and Interharmonic Measurements and Instrumentation, for Power Supply Systems and Equipment Connected Thereto. -Flickermeter - Functional and Design Specifications. -Testing and Measurement Techniques - Power Quality Measurement Methods. -Power Quality Measurement in Power Supply Systems - Part 2: Functional Tests and Uncertainty Requirements.
Power Supply 95-277VAC/ DC ±10%, 47- 440Hz

Description

<p>iMeter5 Advanced Power Quality Analyzer - Advanced Model (PQI-A): Standard</p><p>Model with 4GB Memory + Mains Signalling Voltage, 2kHz-9kHz</p><p>Conducted Emissions, IEC 61000-4-30 Ed. 3.1 Class A Compliant</p>

Documents

IPD Product Catalogue V17
iMeter 5 V4 Datasheet
