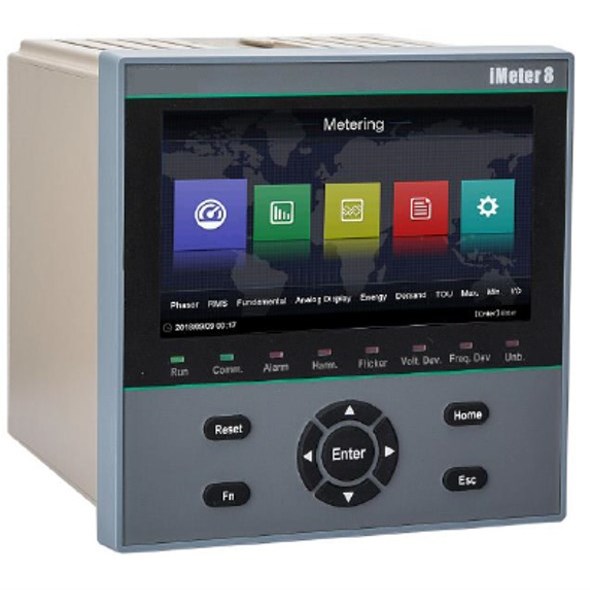

IMETER8-A5925ANAAE iMeter8 Advanced Power Quality Analyzer Standard Model: 1024 samples/cycle 8GB On-Board Memory

Product Code: IMETER8-A5925ANAAE

  • IEC 62053-22 Class 0.2S kWh metering with Multi-Tariff TOU True RMS @ 1024 samples/cycle sampling 8GB on-board log memory 7 High-Resolution Color Dot-Matrix Display @ 800x480 Time Sync. via SNTP, IEEE 1588 (PTP), IRIG-B or GPS 1PPS output 256 Standard Setpoints and 16 High-Speed Setpoints Dual 100BaseT Ethernet and two RS-485 ports IEC 61000-4-30 Ed. 3.1 Class A Certified IEC 61000-4-15, IEC 61000-4-7 Compliance 2kHz to 150kHz Conducted Emission Measurements Disturbance Direction Indicator Disturbance Waveform Recording and RMS Recording EN50160 and IEEE Std 519-2022 Reporting Fault Capture up to 2,000V peak to peak Waveform Recording in COMTRADE and PQDIF file format
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type ADVANCED PQ METER
Brand iMETER
Accuracy ±0.1%
Communication 2x100BaseT Ethernet Port + 2xRS-485
Dimensions 192x192x182.4 mm
I/O Type 8xDI + 4xDO + 4xSS Pulse Outputs
IP Rating IP52
Rated Current 5A (Standard), 1A (Optional)
Rated Frequency 40Hz-60Hz @ 50Hz, 48Hz-72Hz @ 60Hz
Rated Voltage 400ULN/690ULL + 20%
Operational Temperature Range -25°C to 70°C
Power Quality Measurements -Voltage Characteristics of Electricity Supplied by Public Distribution Systems. -General Guide on Harmonic and Interharmonic Measurements and Instrumentation, for Power Supply Systems and Equipment Connected Thereto. -Flicker Meter - Functional and Design Specifications. -Testing and Measurement Techniques - Power Quality Measurement Methods. -Power Quality Measurement in Power Supply Systems-Part 2: Functional Tests and Uncertainty Requirements. -Harmonic Control in Electrical Power systems.
Power Supply 95-250VAC/ DC ± 10%, 47- 440Hz

Description

<p>iMeter8 Advanced Power Quality Analyzer - Standard Model: 1024</p><p>samples/cycle, 8GB On-Board Memory, IEC61000-4-30 Ed. 3.1 Class A Certified</p>
