Specifications

Product Type	CURRENT TRANSFORMER
Brand	IPD
Series	3 IN 1 CT
Accuracy Class	1
Calibrated	No
Compatibility	Standard
Depth	37 mm
Function	Current Measurement
Height	75 mm
Insulation Class	IEC 61869-1/2
IP Rating	IP20
Model	IPD3PHCT22400
Storage Temperature	-25°C - +70°C
Weight	0.6 kg
Width	150 mm
Conformity to standard	IEC 61869-1/2
Current Ratio	400/5
Operating Temperature	-5°C - +50°C
Rated Primary Current	400A
Rated Secondary Current	5A
Rated operating frequency	50 Hz
Max. Operating voltage	0.72 kV
Rated Secondary Apparant Power (VA)	5
Number of primary input	3
Over current limiting factor	FS 5
Type of connection	Terminal block
Mounting	Clip-on DIN rail fastener or 2 screw on metal feet
Secondary connection	Screw
Opening Diameter	22 mm
Dimension Diagram	See datasheet

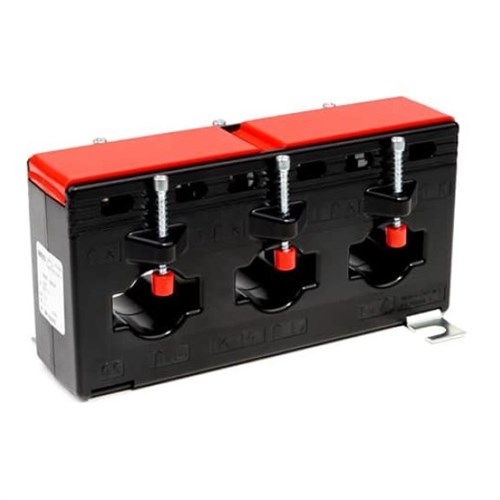

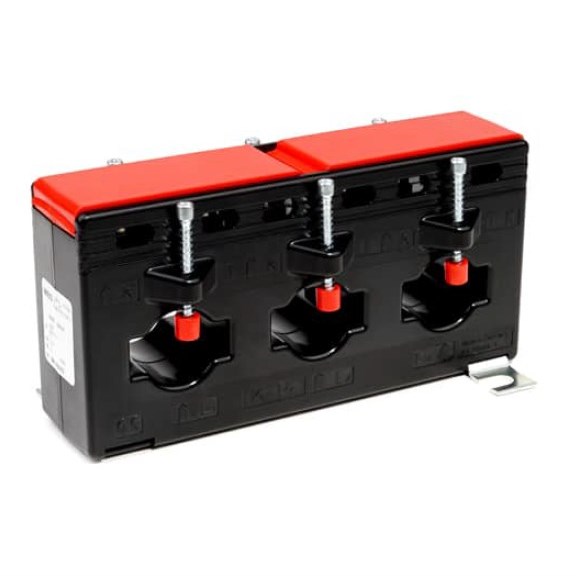

IPD IPD3PHCT22400 3-IN-1 CT 400/5A 5VA Cl.1 CABLE DIA 22MM 150x75x37
