Specifications

Product Type	CURRENT TRANSFORMER
Brand	IPD
Series	SPLIT CORE CT
Accuracy Class	1
Calibrated	No
Compatibility	Standard
Depth	58 mm
Height	158 mm
Insulation Class	IEC 61869-2
IP Rating	IP20
Model	IPDSPCT58250
Storage Temperature	-25°C - +70°C
Weight	0.92 kg
Width	125 mm
Operating Temperature	-5°C - +40°C
Rated Primary Current	250A
Rated Secondary Current	5A
Rated operating frequency	50Hz
Max. Operating voltage	0.72 kV
Rated Burden (VA)	1.5
Number of primary input	1
Over current limiting factor	FS 5
Mounting	Screw on metal feet
Secondary connection	Screw
Dimension Diagram	See datasheet
Rated Cross section	55 x 85 mm

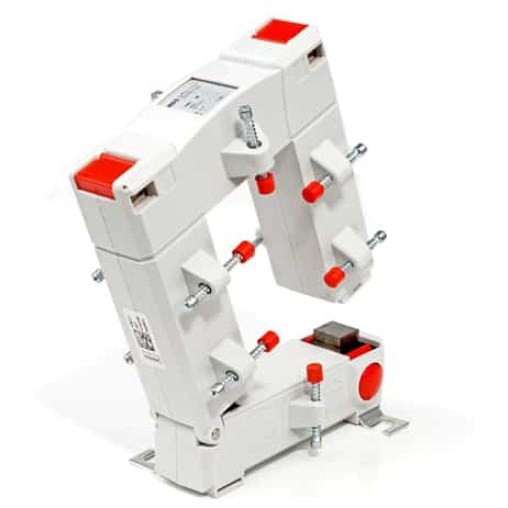

IPD IPDSPCT58250 SPLIT CORE CT 250/5A 1.5VA Cl.1 FRAME 58 50x80mm
