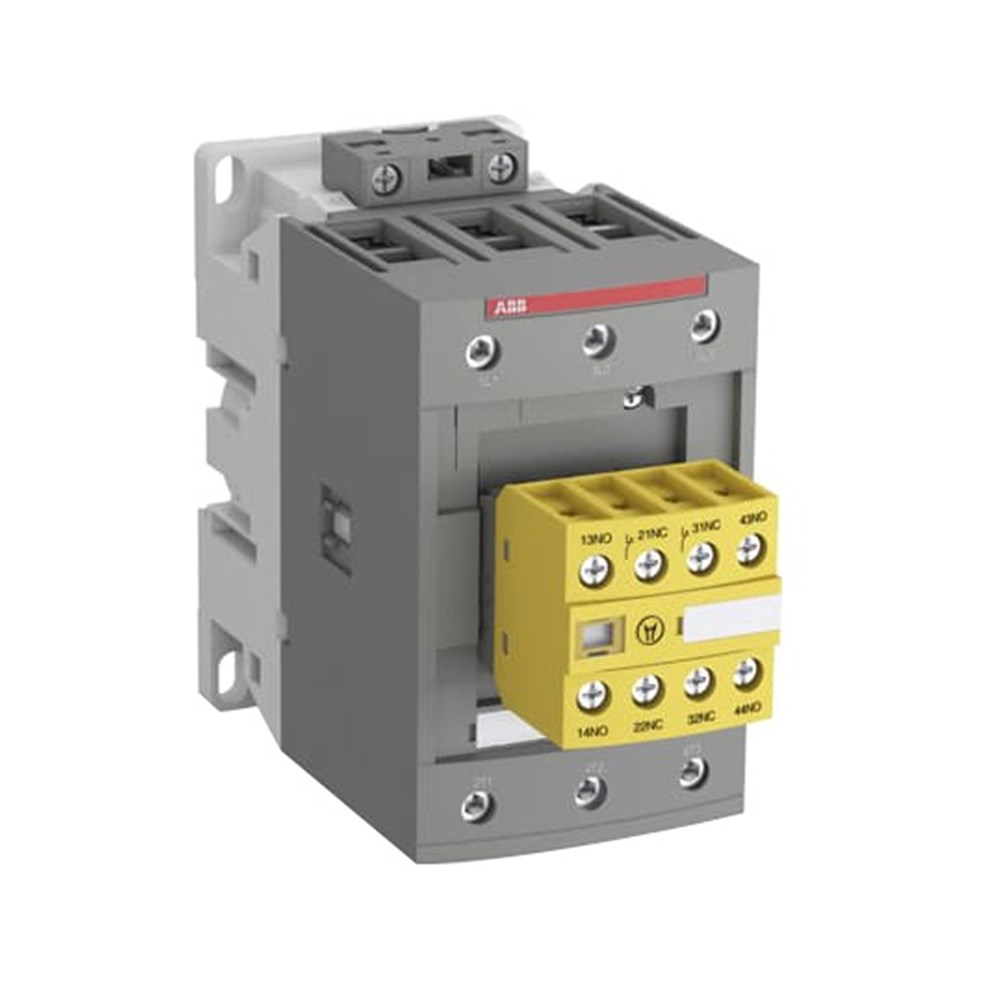

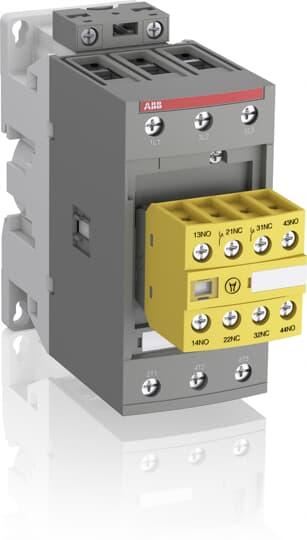

ABB AFS65302211 SAFETY CONTACTOR 3P 105A (AC-1), 30KW 415VAC CONTROL 24-60VAC/DC

Product Code: AFS65302211

In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Mounting Type DIN Rail/Panel
Brand ABB
Auxiliary Contacts 2NO/2NC
Contacts 3NO (Main Contacts)
Mode of Operation AC/DC
No. of Poles 3P
Rated Control Circuit Voltage AC/DC (V) 24 - 60
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 690
Rated Operational Current AC-1 690V (A) 105
Rated Operational Current AC-3 415V (A) 65
Rated Operational Power AC-3 415V (kW) 30
Rated Operational Voltage AC (V) 690
Terminal Type Screw
Dimensions (mm) 125.5H x 144D x 55W
Degree of Protection IP10 (Main Terminals), IP20 (Coil Terminals), IP40 (Aux. Terminals)

Description

The Safety Contactor 3P is a reliable and efficient solution for machine safety applications. It has a rated operational current of 105A at 690V (AC1) and 65A at 415V (AC-3), with a power rating of 30kW. The control voltage ranges from 24V to 60V AC/DC. This contactor is equipped with built-in auxiliary contacts, including 2 normally open (NO) and 2 normally closed (NC) contacts. These contacts are easily identifiable with their yellow low energy auxiliary contact block. They provide the necessary status feedback circuits for machine safety applications. In addition to enhancing safety, this contactor also helps reduce panel energy consumption. It ensures distinct operations even in unstable networks. The Safety Contactor 3P is suitable for both DIN and panel mounting, providing flexibility in installation options.
