Specifications

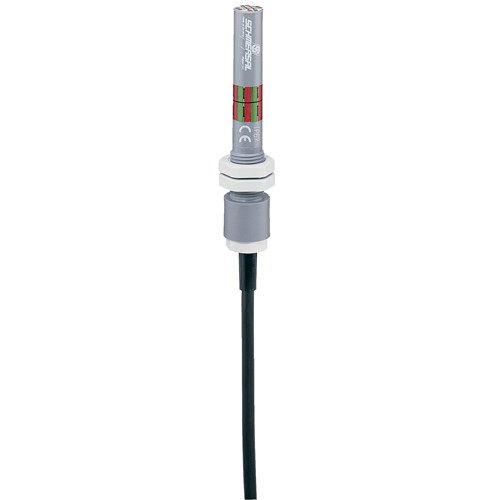

Product Type	Magnetic Reed Switch
Brand	SCHMERSAL
Accuracy	0.3 mm
Actuating Element	Magnet
Actuating Speed	18 m/s
Actuator Type	Plunger
Bounce Duration	0.3 ms
Cable Entry	3 x M16 x 1.5
Cable Length	1 m
Connector Type	Connector plug M12, 4-pole
Contact Configuration	NC
Contact Material	Silver
Control Element	Reed Contacts
Degree of Protection	IP67
Design	Straight
Enclosure Coating Material	Nickel-plated
Front Ring Material	Aluminium
Housing Material	Glass Fibre Reinforced Thermoplastic
Installation Conditions	Flush
Mechanical Life	1000000000 Operations
Mounting Type	Mounting flange EFM
Operational Temperature	-25 to 75 deg C
Overvoltage Category	3
Rated Current	3 A
Rated Voltage	250 VAC
Resistance	10-55 Hz
Sealing Type	Form seals / Lip gaskets / Membrane
Standards and Approvals	cULus
Switching Capacity	120 W
Switching Type	Magnetic Drive
Terminal Type	Screw terminals
Version	Embeddable button - Front plate mounting
